Panel-mount keyboard KH-K68-382TPcarbon contact68-keywith 3 mouse keys
Add to favorites
Compare this product
Characteristics
- Mounting
- panel-mount
- Key type
- carbon contact
- Number of keys
- with 3 mouse keys, 68-key, 70-key
- Pointing device
- with touchpad
- Domain
- industrial, outdoor, for public access kiosks and internet terminals, control panel, for clean rooms, for self-service information kiosk, for mining applications, marine, for control panels, for clean environments, laboratory, information, for the automotive industry, marine
- Connection type
- USB, PS2, RS-232
- Structure
- QWERTY, AZERTY
- Material
- metal, 304 stainless steel
- Protection level
- dust-proof, rugged, vandal-proof, IP65
- Other characteristics
- compact, custom, integrated, programmable, for access control
Description
Product Overview

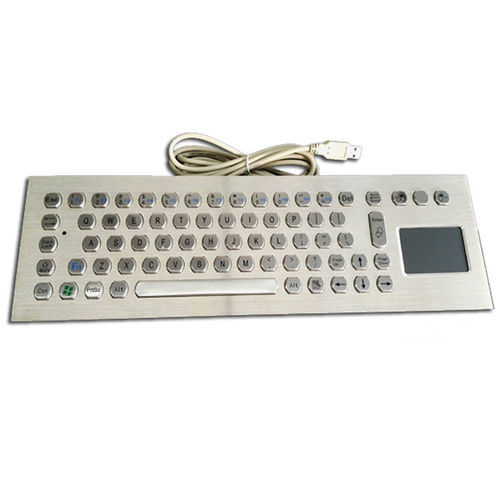

The KH-K68-382TP is a rugged, panel-mount stainless steel keyboard for demanding public access terminals. It features a high-precision sealed touchpad, IP65 protection, and SUS304 construction for reliable, long-term use in high-traffic, unsupervised environments.
Features
Applications
Specifications
The KH-K68-382TP is a rugged, panel-mount stainless steel keyboard for demanding public access terminals. It features a high-precision sealed touchpad, IP65 protection, and SUS304 construction for reliable, long-term use in high-traffic, unsupervised environments.
Features
- 70 keys PC-keyboard standard layout
- SUS304 stainless steel construction
- High-precision pressure-sensing touchpad with three mouse buttons; IP65 rated (dustproof, waterproof, vandal-proof)
- USB, PS/2 or other interface options — plug and play, no drivers needed
- Rear panel hole mounting solution for secure installation
- Customized layout available
Applications
- Self-service kiosks
- Public information terminals
- Transportation hubs
- Industrial control panels
Specifications
- Brand: CNKHTECH
- Model Number: KH-K68-382TP
- Place of Origin: China
- Certifications: CE / ROHS / FCC
- Dimensions: 382 x 122 mm
- Keys: 70 keys
- Key Travel: 2.00 mm travel
- Interface: USB, PS/2 or others
- Mouse: Touchpad mouse (sealed)
- Top Panel: Metal construction
- Power Supply: 5.0V DC ±5%
- OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
- Temperature Range: Storage: -30°C to +70°C; Operating: -20°C to +60°C
- Atmospheric Pressure: 60-106 KPa
- Humidity: 20–95% RH (operating)
- Protection Level: IP65 (front panel), NEMA4x
- MTBF: > 50000H
- MTTR: < 30 min
- Warranty: 1-year limited warranty
