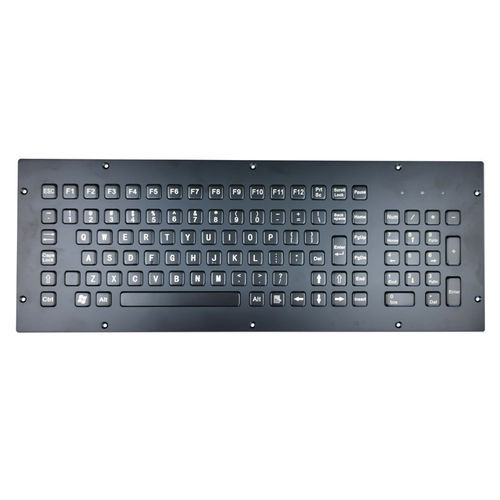

Panel-mount keyboard KH-K102-430B

with mechanical keys102-keywith Fn key

Product Overview
The KH-K102-430B is a full-size panel-mount industrial keyboard offering a complete data-entry layout in a titanium black front panel. Built with 304 stainless steel and rated IP65 on the front face, it provides corrosion resistance and protection against dust and water for control rooms and industrial workstations.

Features

• 102-key full layout including FN keys and a dedicated numeric keypad
• Titanium black front panel; 304 stainless steel construction
• IP65-rated front protection; NEMA4 compliant
• Panel-mount design for secure installation
• Multiple interface options: USB, PS/2 and other outputs
• Custom layouts and key legends available on request

Applications
Designed for control centers, industrial automation panels, data-entry workstations and telecommunications equipment that require a full-size, rugged keyboard with a professional appearance.

Technical specifications

• Dimensions: 430 x 159 mm
• Keys: 102
• Key travel: 2 mm
• Interface: USB, PS/2 or others
• Top panel: 304 stainless steel
• Power supply: 5.0V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Storage -45°C to +85°C; Operating -40°C to +80°C
• Atmospheric pressure: 60–106 KPa
• Humidity: 20–95% RH (operating)
• Standards: RoHS, CE, FCC
• Protection level: IP65 (front panel), NEMA4
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
