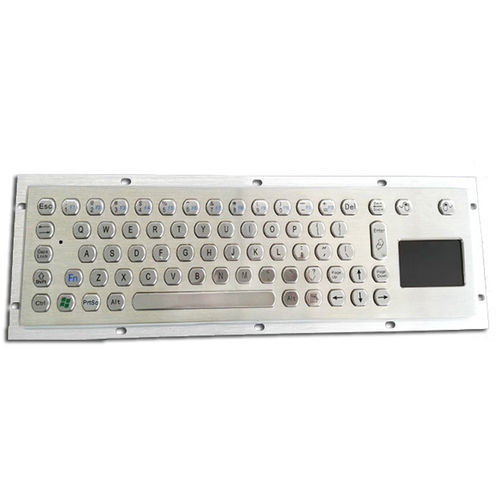

Panel-mount keyboard KH-K68-370TP

carbon contact70-keywith touchpad

Product Overview
The KH-K68-370TP is a heavy-duty stainless steel keyboard with an integrated sealed touchpad, designed for harsh and unsupervised environments. Constructed in SUS304 stainless steel and rated IP65, it delivers a vandal-resistant, sealed interface suitable for industrial control panels, public kiosks, military consoles and other demanding installations.

Features

• SUS304 stainless steel top panel and keys
• IP65 waterproof and dustproof sealing
• Sealed integrated touchpad
• Electro-carbon-on-gold durable key switches
• USB or PS/2 interface (configurable alternatives available)
• International keyboard layout support

Specifications
Dimensions: 370 x 110 mm
Keys: 70 keys
Key travel: 2.00 mm
EMC standard: Council EMC directive 2004/108/EC
Interface: USB, PS/2 or others
Top panel: SUS304 stainless steel
Power supply: 5.0V DC ±5%
OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
Temperature range: Storage -30°C to +70°C; Operating -20°C to +60°C
Atmospheric pressure: 60-106 Kpa
Humidity: 20–95% RH (operating)
MTBF: > 50000 hours
MTTR: < 30 minutes
Warranty: 1-year limited warranty

Certifications and Origin
Brand: CNKHTECH
Model number: KH-K68-370TP
Certifications: CE / ROHS / FCC
Place of origin: China

Technical characteristics / specifications

• Model: KH-K68-370TP
• Brand: CNKHTECH
• Material: SUS304 stainless steel (panel and keys)
• Protection rating: IP65 (waterproof and dustproof)
• Input: Integrated sealed touchpad
• Switch type: Electro-Carbon-on-Gold key switches
• Interfaces: USB, PS/2 or configurable alternatives
• Dimensions: 370 x 110 mm
• Number of keys: 70
• Key travel: 2.00 mm
• Power: 5.0V DC ±5%
• Operating temperature: -20°C to +60°C
• Storage temperature: -30°C to +70°C
• Operating humidity: 20–95% RH
• Atmospheric pressure range: 60–106 Kpa
• MTBF: > 50000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
• Applicable environments: Industrial control systems, public kiosks, military consoles, harsh or unsupervised public environments
