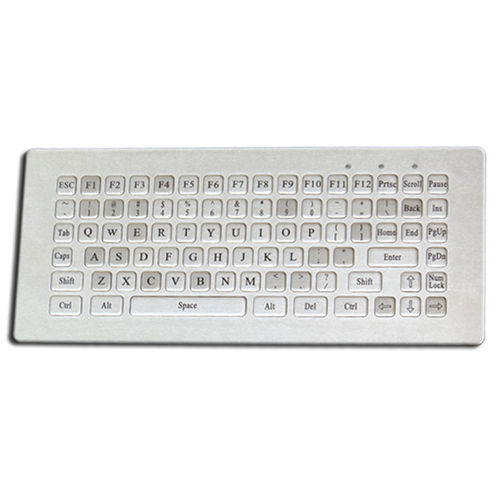

Panel-mount keyboard KH-K85-262

with mechanical keys85-keyfor self-service information kiosk

Product overview
The KH-K85-262 is a compact stainless steel flat-key keyboard designed for space-constrained self-service equipment and public terminals. Its SUS304 top panel, 85-key compact layout and IP65 front protection provide a low-profile, durable input interface for kiosks and automated machines.

Typical applications

• Ticket dispensers and kiosks
• Fuel dispensers
• Vending machines
• Information kiosks
• Access control systems and other self-service terminals

Features

• Compact 85-key layout with flat-key profile
• SUS304 stainless steel top panel
• Durable, clear key legends
• Top-panel bolt mounting for secure installation
• USB, PS/2 and other interface options
• Custom layout support

Specifications
Dimensions: 262x122 mm
Keys: 85
Key travel: 0.45 mm
Interface: USB, PS/2 or others
Top panel: Metal (SUS304)
Power supply: 5.0V DC ±5%
OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
Temperature range: Storage: -25°C to +75°C; Operating: -20°C to +70°C
Atmospheric pressure: 60-106 Kpa
Humidity: 20–95% RH (operating)
Compliant standard: RoHS, CE, FCC
Protection level: IP65 (front panel), NEMA4
MTBF: > 50,000 hours
MTTR: < 30 minutes
Warranty: 1-year limited warranty

Technical specifications

• Model: KH-K85-262
• Construction: SUS304 stainless steel top panel
• Layout: 85 keys, compact flat-key profile
• Mounting: Top-panel bolt mounting
• Interfaces: USB, PS/2 or other selectable interfaces
• Power: 5.0V DC ±5%
• Operating temperature: -20°C to +70°C
• Storage temperature: -25°C to +75°C
• Atmospheric pressure: 60-106 Kpa
• Operating humidity: 20–95% RH
• Ingress protection: IP65 (front), NEMA4
• Standards: RoHS, CE, FCC
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
