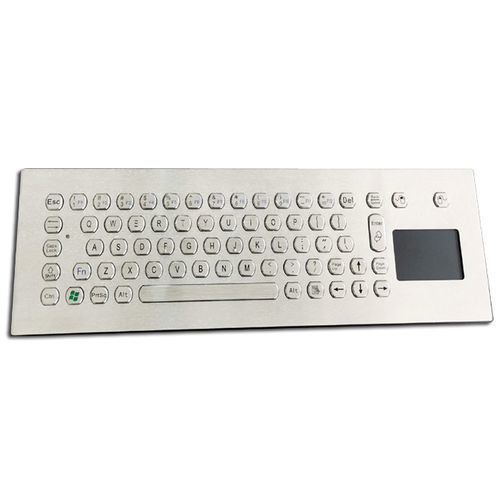

Panel-mount keyboard KH-K68-393TP

with mechanical keys70-keywith touchpad

Product overview
The CNKHTECH KH-K68-393TP is a stainless steel industrial keyboard with an integrated sealed touchpad, designed for operation in harsh industrial and public environments. Constructed in SUS304 stainless steel with IP65 front-panel protection and NEMA4 compliance, it is suitable for self-service kiosks, industrial control panels, medical interfaces and outdoor terminals. Place of origin: China. Brand: CNKHTECH. Certifications: CE, RoHS, FCC.

Key features

• Full SUS304 stainless steel construction
• Sealed, high-precision integrated touchpad
• IP65 front-panel protection; NEMA4 rating
• 70-key full-function layout
• Interfaces: USB, PS/2 (other interfaces available on request)
• Custom layouts and engraving available on request

Technical specifications

• Model: KH-K68-393TP
• Dimensions: 393 x 133 mm
• Pointing device: Sealed touchpad (integrated)
• Key travel: 2.00 mm
• Interface: USB, PS/2 (others on request)
• Power supply: 5.0V DC ±5%
• OS compatibility: Windows, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
• Operating humidity: 20–95% RH
• Atmospheric pressure: 60–106 kPa
• Protection level: IP65 (front panel), NEMA4
• Standards: RoHS, CE, FCC
• MTBF: >50,000 hours
• MTTR: <30 min
• Warranty: 1-year limited warranty

Typical applications
Designed for industrial automation, self-service kiosks, medical devices, ATMs and outdoor/public terminals requiring water and dust protection and vandal resistance.

Certifications & support
Certified to CE, RoHS and FCC. Technical support, customization and ordering are available through CNKHTECH sales channels.
