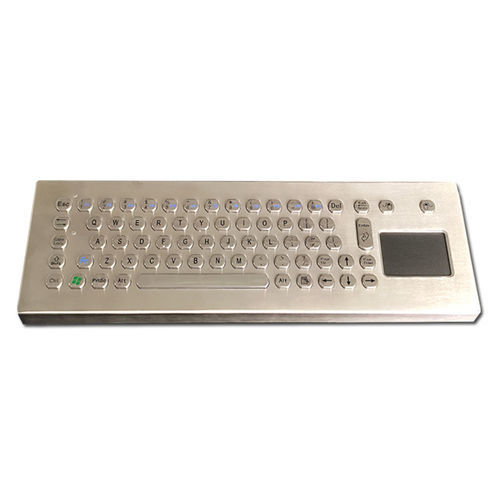

Desktop keyboard KH-K68-395TP-WLAN

with mechanical keys68-keywith 2 mouse keys

Overview Wireless IP65 stainless steel desktop keyboard with integrated touchpad and dual-band 2.4 GHz / 5.8 GHz connectivity for industrial and public environments. Brand: CNKHTECH. Model: KH-K68-395TP-WLAN. Certifications: CE, RoHS, FCC. Place of origin: China.

Features

• High-strength stainless steel housing and keys for corrosion and wear resistance
• Integrated touchpad with two mouse buttons — no external mouse required
• Dual-band wireless (2.4 GHz / 5.8 GHz) for flexible deployment
• Standalone desktop form factor, plug-and-play ready
• IP65 rated: waterproof, dustproof and vandal-resistant for harsh environments

Recommended applications

• Control rooms and HMI stations
• Industrial automation and machine interfaces
• Marine bridges, offshore platforms and shipboard consoles
• Self-service kiosks, ticketing and public terminals
• Security and surveillance stations
• Medical facilities and cleanroom front-ends

SpecificationsDimensions: 395 × 135 mm
Keys: 68 keys + 2 buttons
Mouse: Touchpad with two buttons
Connector: Wireless dual-band 2.4 GHz / 5.8 GHz
Power Supply: 5.0 V DC ±5%
OS Compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
Temperature Range: Storage: -30°C to +80°C; Operating: -20°C to +70°C
Humidity: 0–95% RH (operating)
MTBF: > 50,000 hours
MTTR: < 30 minutes
Warranty: 1-year limited warranty

Technical specifications

• Model: KH-K68-395TP-WLAN
• Housing / Keys: High-strength stainless steel
• Ingress Protection: IP65 (waterproof, dustproof, vandal-resistant)
• Input device: Integrated touchpad with two mouse buttons
• Wireless: Dual-band 2.4 GHz / 5.8 GHz
• Power: 5.0 V DC ±5%
• Compatibility: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -20°C to +70°C; Storage temperature: -30°C to +80°C
• Humidity (operating): 0–95% RH
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
