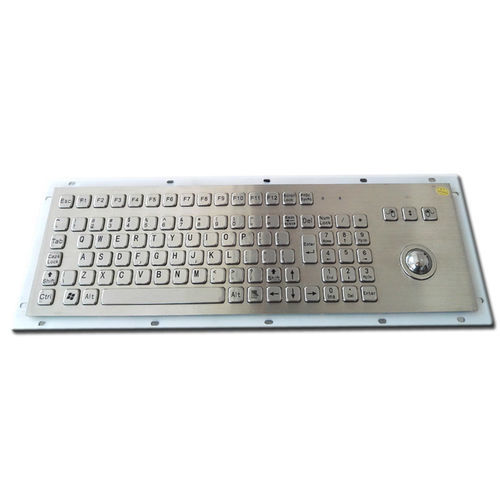

Panel-mount keyboard KH-K95-400

carbon contactwith 3 mouse keys95-key

Product overview
The KH-K95-400 is a panel-mount keyboard engineered for demanding industrial and outdoor applications. It features sealed SUS304 stainless steel construction, a full 95-key layout with independent FN keys, and an integrated 25 mm trackball for reliable cursor control in harsh environments. The front panel meets IP65 and NEMA4 protection, making it suitable for maritime, military, industrial automation and public kiosk installations.

Features

• Sealed SUS304 stainless steel panel-mount design providing IP65 front protection.
• 95 full-function keys including independent FN keys for extended control.
• Integrated 25 mm diameter trackball for precise pointing in wet, dusty or corrosive conditions.
• Multiple interface options: USB, PS/2 (other interfaces available on request).
• Customizable key layouts to meet specific application requirements.
• Wide operating temperature and humidity ranges for outdoor and industrial use.

Specifications

• Model: KH-K95-400
• Dimensions: 400 x 135 mm
• Construction: Sealed SUS304 stainless steel (top panel metal)
• Layout: 95 keys with independent FN keys; key travel: 2.00 mm
• Pointing device: 25 mm integrated trackball
• Interface: USB, PS/2 or others on request
• Power supply: 5.0V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android
• Operating temperature: -20°C to +70°C; Storage: -30°C to +80°C
• Operating humidity: 20–95% RH
• Atmospheric pressure: 60–106 Kpa
• Protection rating: IP65 (front panel), NEMA4
• Standards: RoHS, CE, FCC
• MTBF: >50000H; MTTR:
• Warranty: 1-year limited warranty
