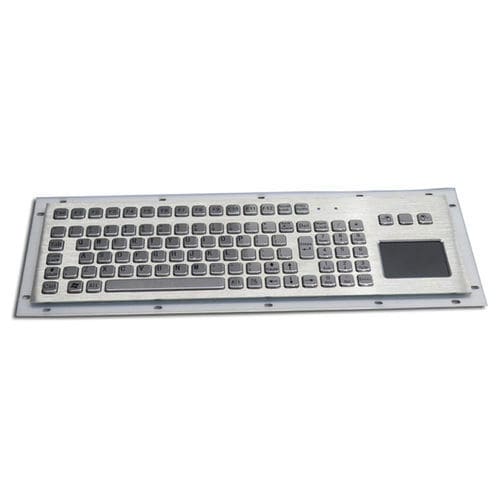

Panel-mount keyboard KH-K95-400TP

carbon contactwith 3 mouse keys95-key

Overview
The KH-K95-400TP is a panel-mount anti-vandal keyboard intended for industrial and mission-critical installations. It offers a full 95-key layout with independent F1–F12 keys, a SUS304 stainless steel front panel, and an integrated touchpad pointing device. The front panel meets IP65 (NEMA4) protection for operation in wet, dusty or corrosive environments.

Applications

• Military control consoles
• Maritime bridges and shipboard control panels
• Industrial automation panels and SCADA operator stations
• Outdoor public terminals, kiosks and self-service equipment

Features

• Full 95-key layout with independent F1–F12 function keys for standard input and shortcuts
• SUS304 stainless steel top panel for corrosion resistance and easy cleaning
• Integrated pointing device: touchpad with two mouse buttons (certain configurations may include a 25 mm trackball)
• Front panel IP65 / NEMA4 protection against water and dust
• Panel-mount design with secure fastening for permanent integration into equipment enclosures
• Support for custom key layouts and legends to meet site-specific requirements

Certifications & Origin
Place of Origin: China
Brand: CNKHTECH
Certifications: CE, RoHS, FCC
Model: KH-K95-400TP

Specifications

• Dimensions: 400 x 135 mm
• Pointing device: Touchpad mouse (optional 25 mm trackball)
• Key travel: 2.00 mm
• Interface: USB, PS/2 or other options
• Power supply: 5.0 V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, macOS, iOS, Android
• Operating temperature: -20°C to +70°C; Storage: -30°C to +80°C
• Atmospheric pressure: 60–106 kPa
• Operating humidity: 20–95% RH
• Protection level: IP65 (front), NEMA4
• MTBF: > 50,000 h
• MTTR: < 30 min
• Warranty: 1-year limited warranty
