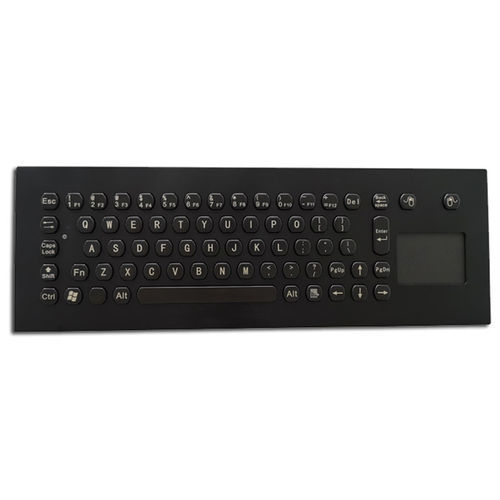

Panel-mount keyboard KH-K68-393TP-B
carbon contactwith 2 mouse keyswith Fn key

Panel-mount keyboard - KH-K68-393TP-B - Kehang Technology - carbon contact / with 2 mouse keys / with Fn key
Panel-mount keyboard - KH-K68-393TP-B - Kehang Technology - carbon contact / with 2 mouse keys / with Fn key
Panel-mount keyboard - KH-K68-393TP-B - Kehang Technology - carbon contact / with 2 mouse keys / with Fn key - image - 2
Panel-mount keyboard - KH-K68-393TP-B - Kehang Technology - carbon contact / with 2 mouse keys / with Fn key - image - 3
Add to favorites
Compare this product
Go to the Kehang Technology website for more information

Characteristics

Mounting
panel-mount
Key type
carbon contact
Number of keys
with Fn key, with 2 mouse keys, 70-key
Pointing device
with touchpad, with mouse
Domain
industrial, outdoor, for public access kiosks and internet terminals, control panel, for self-service information kiosk, for control panels, maritime industry, for business
Connection type
USB, PS2
Structure
QWERTY, AZERTY
Material
metallic, stainless steel
Protection level
waterproof, rugged, shock resistant, EMC, IP65
Other characteristics
custom, short-travel, for access control

Description

Product summary
Rugged industrial keyboard with an electro-black stainless steel finish and a sealed waterproof touchpad engineered for reliable operation in wet conditions and harsh public or industrial environments. IP65 front-panel protection and wide environmental tolerance make it suitable for kiosks, automated monitoring, industrial control panels, offshore platforms, military consoles and other demanding applications.

Features
  • Durable electro-black stainless steel finish
  • Waterproof, high-precision touchpad (operable with wet hands)
  • IP65 waterproof & dustproof rating (front panel)
  • 70-key full-function layout
  • Wide environmental tolerance (EMC, temperature, shock)
  • Interface options: USB, PS/2 or others
  • Customized layouts available on request
  • Certifications: CE, RoHS, FCC
  • Place of origin: China

Technical characteristics / Specifications
  • Model: KH-K68-393TP-B
  • Dimensions: 393 x 133 mm
  • Construction: Electro-black stainless steel top panel / metal construction
  • Touch input: Sealed waterproof touchpad (high precision, operable with wet hands)
  • Key travel: 2.00 mm travel
  • Layout: 70-key full-function
  • Interfaces supported: USB, PS/2 (and other optional interfaces)
  • Power: 5.0 V DC ±5%
  • OS compatibility: All Windows versions; Vista; Linux/Unix; Mac OS X; iOS; Android
  • Environmental: Storage -40°C to +80°C; Operating -30°C to +70°C; 60-106 KPa; 20–95% RH
  • Protection: IP65 front-panel / NEMA4
  • Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
  • Compliance: RoHS, CE, FCC
  • Origin: China
  • Warranty: 1-year limited
