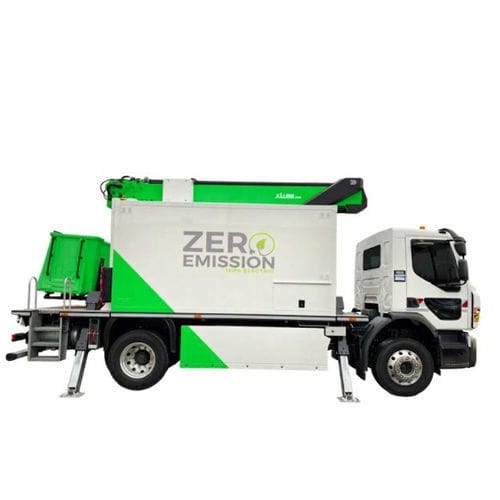

Mobile telescopic boom lift Xtenso 4®

truck-mountedelectricbattery-powered

Product description
The XTENSO 4 is a telescopic aerial platform mounted on a Renault Trucks D18 Wide Z.E., configured for network operations and public lighting maintenance. It features an electric powertrain with two electric motors (total power 370 kW, continuous power 260 kW) and lithium‑ion battery options (200 kWh and 265 kWh) providing up to 180 km range when installed on the specified chassis. The boom architecture combines a double telescopic main arm and a telescopic pendulum arm, enabling a maximum working height of 21 m and an extended lateral outreach of up to 16.40 m. The platform is equipped with a low‑voltage insulated basket for live‑network work. The lifting arm arrangement provides 180° orientation and 360° ground access to the basket. Lateral offset with maximum basket load is available up to 7 m; at 15 m working height the outreach is 5.10 m. Capacity: 265 kg. Basket dimensions: 89 x 115 x 156 cm. Chassis weight category: > 3.5T.

Standard features

• Engine stop/start from the nacelle
• Stabilisation independently controlled from nacelle and from ground
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to work platform
• Conveyor chain for hoses inside the mast for optimum protection
• Automatic centring of nacelle and turret
• Lifting arm: double telescopic main arm + telescopic pendulum arm with 180° orientation
• Telescopic pendulum arm for overhangs > 5.10 m and 360° ground access
• Hydraulic basket rotation in all positions, including on the ground
• Green Pack
• 2 electric motors, total power 370 kW (continuous 260 kW)
• 200 kWh and 265 kWh lithium‑ion battery options
• Two‑speed gearbox

Examples of vehicles

• Renault TRUCKS D18 WIDE Z.E.
• PTAC options: 19T or 26T

Technical specifications

• Max. working height: 21 m (68'9")
• Max. lateral outreach (boom + pendulum): 16.40 m (52'9")
• Max. working outreach (primary arm): 9.50 m
• Boom rotation: 420°
• Max. working load: 265 kg
• Max. platform height: 19 m (62'7")
• Outriggers: 4
• Basket size: 89 x 115 x 156 cm
• Chassis weight category: > 3.5T
• Arm: double telescopic main arm + telescopic pendulum arm (telescopic and articulated)
• Engine: Electric
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Electric powertrain: 2 electric motors (370 kW total), continuous power 260 kW
• Battery options: 200 kWh and 265 kWh lithium‑ion
• Autonomy: up to 180 km (when mounted on Renault Trucks D18 Wide Z.E.)
• Gearbox: two speeds
