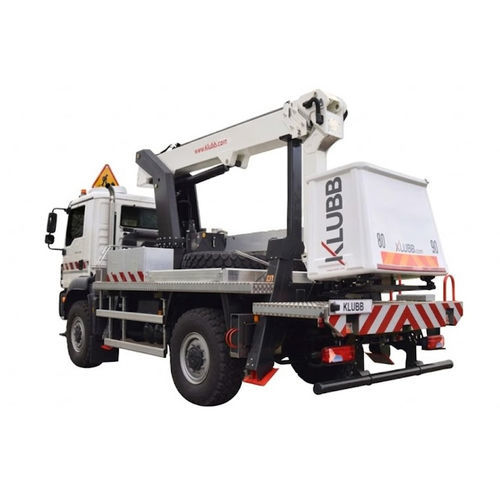

Truck-mounted telescopic boom lift Xtenso 3®

gas

Overview

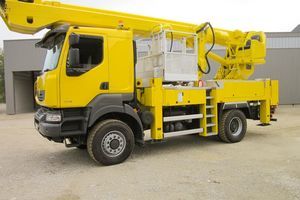

The Xtenso 3® is an 18.50 m telescopic aerial work platform designed for mounting on heavy trucks from 14 t (chassis version). Working height: 18.50 m. Maximum lateral outreach: 13.90 m. Boom rotation: 420°. Platform capacity: 265 kg (see variations). A 180° articulated telescopic jib provides an up-and-over height of 5.10 m, enabling 360° ground access and allowing operators to work around obstacles such as tree branches, roofs, balconies and power lines. The machine is engineered for operator safety, comfort and movement flexibility.

Key product notes

• KLUBB model: Xtenso 3®
• Working height: 18.50 m
• Lateral outreach / offset: 13.90 m
• Rotation: 420°
• Platform capacity: 265 kg (references include 2 operators with outriggers and other configuration mentions)
• Telescopic arm with 180° articulated telescopic jib for overhang and ground access

Green Pack
The optional "Green Pack" enables battery-assisted operation of the platform with the vehicle engine switched off to reduce fuel consumption and emissions.

Standard features

• Engine start/stop from the basket
• Stabilization with independent controls in the basket and from ground level
• Independent manual emergency pump
• Proportional controls for all movements
• Secure access to the working platform
• Hoses and cables routed inside the boom for protection
• Automatic centering of the platform and turret
• Lifting arm composed of double telescope and telescopic jib with 180° orientation
• Telescopic jib allowing overhang greater than 5.10 m and 360° ground access
• Hydraulic rotation of the basket in all positions

Examples of compatible vehicles

• Renault D14
• Volvo FL42
• MAN TGM
• Iveco Eurocargo
• Mercedes Atego
• Mercedes Unimog

Technical specifications

• Max. working height: 18.50 m (60'70")
• Max. working outreach: 13.90 m (45'70")
• Boom rotation: 420°
• Max. working load: 265 kg
• Max. platform height: 16.50 m (54'20")
• Outriggers: H-shaped outriggers
• Basket size: 89 x 115 x 156 cm
• Chassis weight: +3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
