Truck-mounted articulated boom lift PNT 290 H

hydraulicdieselfor construction

Overview

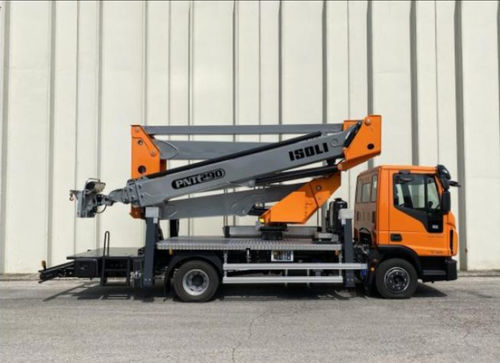

The PNT 290 H is an articulated truck-mounted aerial work platform engineered for safe access at height. With a maximum working height of 29 m and a horizontal outreach of 17 m, it is suited to maintenance, construction, industrial and utility tasks. The platform supports a 250 kg load and uses 4 H-shaped outriggers for stable positioning. The removable basket can be replaced by a hook to operate the boom as a crane with ground remote control.

Model and capacity

• KLUBB Model = PNT 290 H
• Capacity = 250 kg

Technical specifications

• Max. working height: 29 m
• Max. working outreach: 17 m
• Boom rotation: 400°
• Max. working load: 250 kg
• Max. platform height: 27 m
• Outriggers: 4 H-shaped
• Basket size: 220 x 75 x 110 cm
• Chassis weight: 11 T
• Arm: Articulated
• Engine: Diesel
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Operators: 2

Examples of vehicles

• Iveco Eurocargo
• Renault D16

Standard features

• New simplified control station
• Engine start/stop in nacelle
• 2 stabilization modes
• Assisted centering of turret and basket
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to the work platform
• Rigid PVC protection for controls in the upper control area

Green pack
The entire range of aerial work platforms can be fitted with the ecological option "Green Pack" to allow platform operation with the vehicle engine switched off, reducing noise and emissions during stationary work.

Detailed technical specifications

• Max. working height: 29 m
• Max. working outreach: 17 m
• Boom rotation: 400°
• Max. working load: 250 kg
• Max. platform height: 27 m
• Outriggers: 4 H-shaped
• Basket dimensions: 220 x 75 x 110 cm
• Chassis weight: 11 T
• Arm type: Articulated
• Engine: Diesel
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Operators: 2
