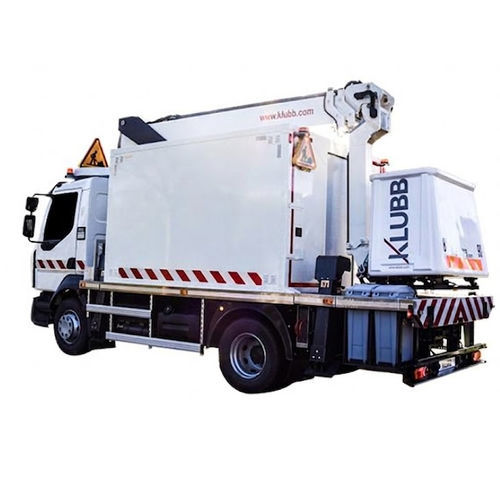

Mobile telescopic boom lift Xtenso 3®

truck-mountedgasworkshop

Overview
The XTENSO 3® is a telescopic jib mounted on a heavy truck providing a working height of 18.50 m and a lateral outreach of 13.90 m with a maximum platform load of 265 kg. Designed for network interventions, it is suitable for street lighting, telecom maintenance and similar applications. This workshop version integrates a large on-board workshop area for secure storage and transport of tools, equipment and materials for on-site operations.

Key data

• Working height: 18.50 m
• Maximum outreach: 13.90 m
• Maximum working load: 265 kg (2 operators)
• Rotation (boom/turret): 420°
• Platform (basket) size: 89 x 115 x 156 cm
• Outriggers: H-shaped
• Chassis class: > 3.5 T

Standard features

• Engine start/stop from the basket
• Stabilization with independent controls in basket and from ground
• Independent emergency manual pump
• Proportional controls on all movements
• Secure access to the working platform
• Hoses and cables routed inside boom for maximum protection
• Automatic centering of platform and turret
• Lifting arm: double telescope plus telescopic jib with 180° orientation
• Telescopic jib enabling an overhang > 5.10 m and 360° ground access
• Hydraulic rotation of the basket in all positions

Examples of vehicles

• MAN TGL
• MAN TGM
• IVECO EUROCARGO
• RENAULT D
• MERCEDES ATEGO
• MERCEDES UNIMOG

Options
The range can be equipped with the Green Pack ecological option allowing operation with the vehicle engine switched off.

Technical specifications

• Max. working height: 18.50 m
• Max. working outreach: 13.90 m
• Boom rotation: 420°
• Max. working load: 265 kg
• Max. platform height: 16.50 m
• Outriggers: H-shaped
• Basket size: 89 x 115 x 156 cm
• Chassis class: > 3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
