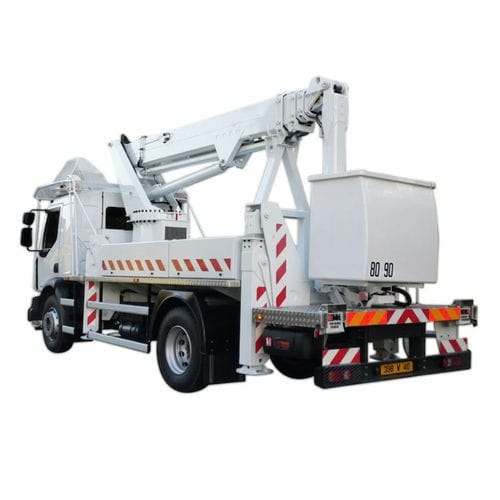

Truck-mounted telescopic boom lift Xtenso 5®

gas

Product overview
The Xtenso 5 truck-mounted telescopic aerial platform delivers a working height of 25.50 m and a lateral outreach of 20.00 m, installed on heavy trucks from 16 t. Its articulated telescopic jib (180° pivot) enables operators to overcome obstacles and position the basket close to the work area while maintaining a constant capacity up to 280 kg.

Key figures

• Working height: 25.50 m
• Outreach (offset): 20.00 m
• Boom rotation: 420°
• Capacity / max working load: 280 kg (3 operators with outriggers)

Examples of vehicles

• MAN TGM
• Volvo FL42
• Renault D18
• Mercedes Arocs

Standard features

• Engine start/stop from basket
• Stabilization with independent controls in the basket and from the ground
• Independent emergency manual pump
• Proportional controls on all movements
• Secure access to the working platform
• Hoses and cables routed inside the boom for maximum protection
• Automatic centering of the platform and the turret
• Lifting arm: double telescope plus articulated telescopic jib (180°)
• Telescopic jib providing an overhang >5.10 m allowing 360° ground access
• Hydraulic rotation of the basket in all positions

Other notable elements

• Basket size: 89 x 115 x 156 cm
• Max. platform height: 23.50 m
• Outriggers: H-shaped outriggers
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Max. permissible wind speed: 90 km/h (full outreach) and 45 km/h (limited outreach or no outriggers)
• Operators: 3
• Max. slope: 15%
• Max. tilt: 5%
• Green Pack option available to operate the platform with the vehicle engine off

Technical specifications

• Max. working height: 25.50 m (83'66")
• Max. working outreach: 20.00 m (65'70")
• Boom rotation: 420°
• Max. working load: 280 kg
• Max. platform height: 23.50 m (77'10")
• Outriggers: H-shaped outriggers
• Basket size: 89 x 115 x 156 cm
• Chassis weight: > 3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Max. permissible wind speed use: 90 km/h (full outreach) and 45 km/h (limited outreach or no outriggers)
• Operators: 3
• Max. slope: 15%
• Max. tilt: 5%
