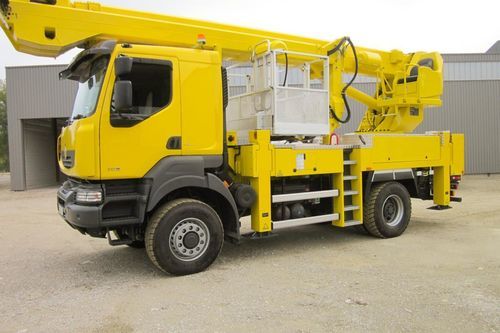

Truck-mounted telescopic boom lift 350 TBE

truck-mountedoutdoorfor construction

Product overview
The truck-mounted telescopic aerial platform 350 TBE is designed for versatile high-reach operations. With a working height of 35 m and a maximum outreach of 25.60 m, the boom comprises 4 sections (3 telescopes) and finishes with a pendulum arm with jib to bypass obstacles and position the basket close to the work area without relocating the vehicle. The platform supports up to 500 kg, enabling team operations and transport of tools and materials. The telescopic jib provides an overhang of 11.30 m for interventions under bridges and similar structures. Typical applications include tree pruning, maintenance of historic buildings, network and utility works, and wind turbine maintenance.

Key data

• Working height: 35 m
• Maximum outreach: 25.60 m
• Offset (alternative listing): 23.50 m
• Rotation: 420°
• Basket capacity: 500 kg (up to 5 operators with outriggers)

Standard features

• Engine start/stop from the basket
• Independent stabilization controls from ground and basket
• Independent emergency electric pump
• Proportional controls on all movements
• Secure access to the platform
• Hoses and cables routed inside the boom for protection
• Automatic centering of platform and turret
• Lift arm: triple telescope plus telescopic pendulum arm with 180° orientation and jib
• Telescopic jib allowing 11.30 m overhang
• Hydraulic rotation of the basket in all positions

Examples of vehicles

• Suitable for all types of trucks from 19 t

Green Pack
The platforms can be equipped with the ecological option "Green Pack" to operate the aerial unit with the vehicle engine switched off.

Technical specifications

• Brand: KLUBB
• Model: 350 TBE
• Working height: 35 m
• Maximum outreach: 25.60 m
• Offset: 23.50 m
• Rotation: 420°
• Arm composition: 4 sections including 3 telescopes + pendulum arm with jib
• Telescopic jib overhang: 11.30 m
• Basket capacity: 500 kg (up to 5 operators with outriggers)
• Lifting arm type: triple telescope + telescopic pendulum arm
• Hydraulic basket rotation in all positions
• Applications: tree pruning; maintenance of historic buildings; network and utility works; wind turbine maintenance
• Suitable vehicle base: trucks from 19 t
