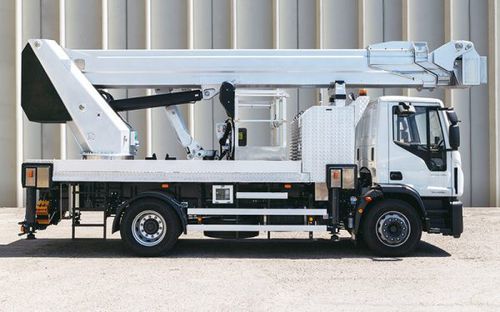

Truck-mounted telescopic boom lift PTJJ 36.29S

dieseloutdoorfor construction

Overview
The Isoli PTJJ 36.29 is a telescopic truck-mounted aerial work platform engineered for demanding tasks at height. Mounted on an 18-ton Iveco ML180E30 chassis cab, it provides a maximum working height of 36 m and a platform height of 33.60 m. With a 29 m outreach and the ability to work with negative outreach, it is suitable for inspections and access in constrained or below-level situations.

Model and Capacity
KLUBB Model = PTJJ 36.29S
Capacity = 400 kg, 3 operators with outriggers

Platform and Basket
Fitted with an aluminium basket sized 2200/3200 x 900 x 1100 mm (220/320 x 90 x 110 cm) with a maximum capacity of 400 kg. The basket rotates 90° to both right and left, improving positioning and access in restricted or technically complex environments.

Applications
Suitable for construction, maintenance and industrial inspection tasks requiring height access, extended reach and precise positioning.

Green Pack
The range can be equipped with the ecological option "Green Pack" allowing operation of the platform with the vehicle engine off.

Technical specifications

• Max. working height: 36 m (118'11")
• Max. working outreach: 29 m (95'14")
• Boom rotation: 420°
• Max. working load: 400 kg
• Max. platform height: 33.60 m (110'23")
• Outriggers: 4 HE+HE
• Basket size: 2200/3200 x 900 x 1100 mm (220/320 x 90 x 110 cm)
• Chassis weight: 18 T
• Arm: Telescopic
• Engine: Diesel
• IPAF category: 1b
• Lifting mechanism: Hydraulic
