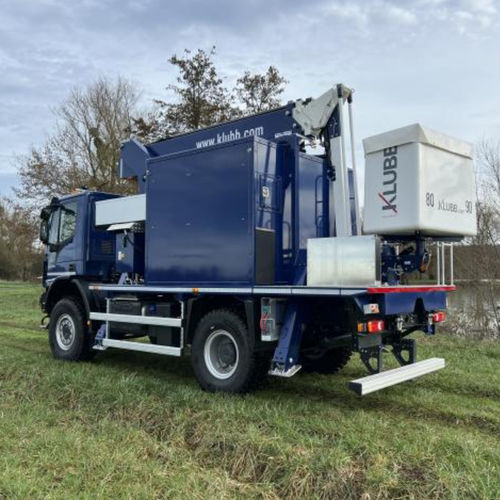

Truck-mounted telescopic boom lift E18P 4x4

remote-controlledemission-freeeco-friendly

Product overview
Ultra-compact, high-performance telescopic truck-mounted aerial platform KLUBB E18P 4x4. Insulated ET pendulum telescopic boom for live-line work up to 46 kV (ANSI 92.2 Category C). Basket capacity 240 kg, large storage compartments and a very small stabilisation footprint (under 30 cm each side).

Key data

• Working height: 18.50 m
• Offset: 12 m
• Rotation: 360°
• Capacity (as shown on page): 250
• Basket capacity: 240 kg

Standard features

• Engine start/stop from the basket
• Independent emergency electric pump with full controls in the basket
• Secure access to the work platform
• Hoses and cables routed inside the boom structure for maximum protection
• Insulated boom for remote working up to 46 kV (ANSI 92.2 Category C)
• Two control systems: basket control + remote control

Options

• Signalling: triple-flash, two flashing lights, reflective strips
• 820 kg trailer coupling on reinforced vehicle platform
• Reinforced suspension
• Customised vehicle layout
• Side/interior ladder rack
• Tool holder in the basket
• Green Pack: operation with vehicle engine switched off

Examples of vehicles

• IVECO DAILY 7T

Green Pack
The full range of platforms can be equipped with the ecological option "Green Pack", allowing operation with the vehicle engine switched off for reduced emissions and noise on site.

Technical specifications

• Model: E18P 4x4
• Working height: 18.50 m
• Offset: 12 m
• Rotation: 360°
• Capacity (visual spec): 250
• Basket capacity: 240 kg
• Insulated boom for working up to 46 kV (ANSI 92.2 Category C)
• Engine start/stop from basket
• Independent emergency electric pump with basket controls
• Secure access to the work platform
• Hoses and cables routed inside the boom structure
• Small stabilisation footprint: less than 30 cm each side
• Large storage compartments
