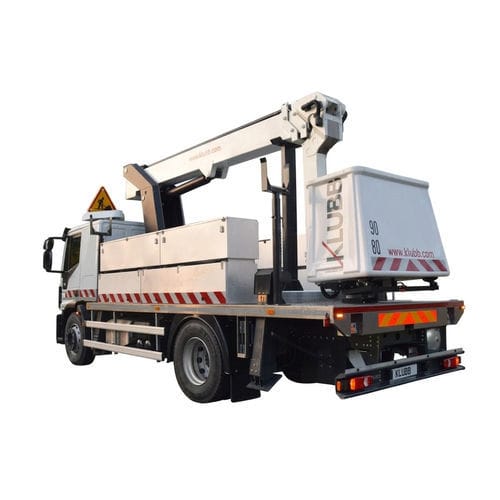

Truck-mounted telescopic boom lift Xtenso 4®

gasoutdoor

Product Overview
The Xtenso 4 is a truck-mounted telescopic aerial work platform for 16 t and above that provides a maximum working height of 21 m and a lateral outreach of 16.40 m. Rated capacity is 265 kg (2 operators) with outriggers. The lifting system combines a double telescopic main boom and an articulated telescopic jib with 180° orientation, offering an up-and-over reach of 5.10 m and 360° ground access. Proportional controls allow precise positioning. All Xtenso platforms can be operated with the vehicle engine turned off using Green Pack technology to save fuel and reduce environmental impact.

Standard Features

• Engine start and stop from basket
• Stabilization with independent controls in the basket and from the ground
• Independent emergency manual pump
• Proportional controls on all movements
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for maximum protection
• Automatic centering of the platform and turret
• Lifting arm: double telescopic main boom + articulated telescopic jib (180°)
• Telescopic jib providing an overhang of more than 5.10 m and allowing 360° ground access
• Hydraulic rotation of the basket in all positions

Examples of vehicle chassis

• Renault D16
• Volvo FL42
• MAN TGM
• Iveco Eurocargo
• Mercedes Atego / Arocs

Green Pack
The Xtenso range can be equipped with the Green Pack option, which enables platform operation with the vehicle engine switched off to save fuel and reduce environmental impact.

Characteristics / Technical specifications

• Model: Xtenso 4®
• Max. working height: 21 m (68'11")
• Max. working outreach: 16.40 m (53'10")
• Boom rotation: 420°
• Max. working load: 265 kg
• Max. platform height: 19 m (62'40")
• Outriggers: H-shaped outriggers
• Basket size: 89 x 115 x 156 cm
• Chassis weight increase: + 3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Max. permissible wind speed for use: 45 km/h
• Max. slope: 15%
• Max. tilt: 5%
