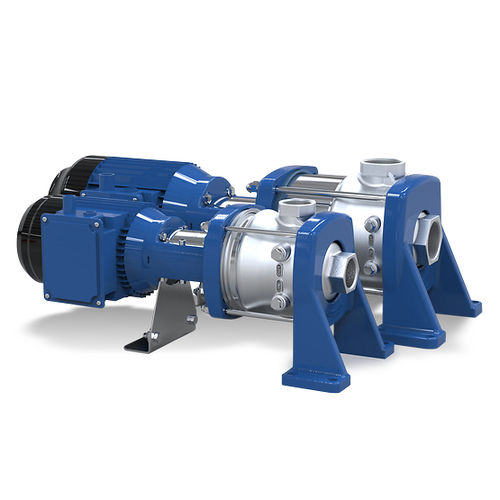

Water pump Movitec H(S)I
electriccentrifugalindustrial

water pump
water pump
Add to favorites
Compare this product

Characteristics

Media
water
Operation
electric
Technology
centrifugal
Domain
industrial
Other characteristics
multicellular, nickel
Applications
feed, irrigation, washing, process, spraying, recirculation, booster, treatment, for power stations, cooling, boiler supply, boiler, high-pressure, transport
Flow

Max.: 26.3 m³/h (928.7757 ft³/h)

Min.: 0 m³/h (0 ft³/h)

Pressure

Max.: 25 bar (362.594 psi)

Min.: 0 bar (0 psi)

Head

Max.: 195 m (639'09")

Min.: 0 m (0'00")

Power

7.5 kW (10.2 hp)

Description

Movitec H(S)I Main applications Building services Energy Mining Power Stations > 100 MW Process Water Water supply Watertransport Technical data Q max 26.3 m³/h H max 195.0 m Design Multistage horizontal high-pressure centrifugal pump Application Spray irrigation, general irrigation, washing, water treatment, fire-fighting and pressure booster systems, hot water and cooling water recirculation, boiler feed systems, etc. Overview of technical data Q (50Hz) - 0.0 – 26.3 (m³/h) H (50Hz) - 0.0 – 195.0 (m) Barrel casing - Yes Type of bearing - Plain bearings Casing partition - Radially split Diffuser material (EN standard) - 1.4404, 1.4301 Drive frequency - 50 Hz /60 Hz Type of drive - Electric motor Drive voltage - Low voltage Type of first impeller - Radial No. of impeller entries - Single entry Impeller material (EN standard) - 1.4301, 1.4404 Type of installation - Close-coupled Type of coupling - Direct Type of lubrication - Product lubrication Max. permissible fluid temperature - 140.0 (°C) Nozzle position - End suction Pump set location - Dry installed Suction characteristics - Non-priming Suitable for drinking water - Yes Type of connection - Thread Type of stage casing - Stage casing with diffuser UNSPSC classification - 4015150300 Casing material (EN standard) - 1.4301, 1.4404, EN-GJL-250 Installation position - Horizontal Shaft seal type - Mechanical seal Main applications - Industry and process engineering, Water, Building services Casing material - Chrome nickel steel Maximum discharge-side pressure - 25.0 (bar) Maximum drive rating - 7.5 (kW) Type of installation - Stationary Maximum speed of rotation - 2900.0 (1/min)

Catalogs
