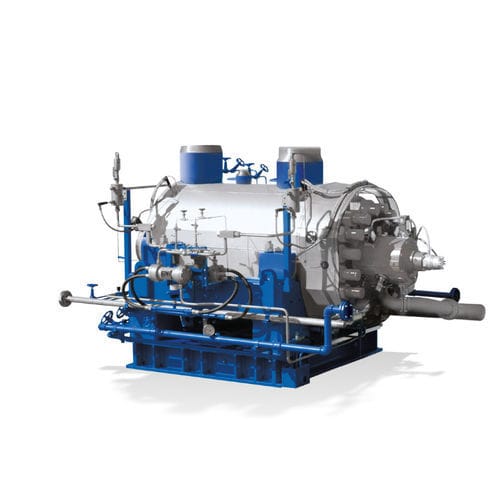

Cartridge pump CHTCwatercondensateelectric
Add to favorites
Compare this product
Characteristics
- Technology
- cartridge
- Fluid
- water, condensate
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- handling, high-pressure, service, drum, feed, descaling, for power stations, boiler, suction
- Voltage
- 400 V, 460 V
- Other characteristics
- horizontal mount, multi-stage, radial
- Flow
Min.: 0.1 m³/h
(3.53147 ft³/h)Max.: 1,278 m³/h
(45,132.14407 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 400 bar
(5,801.51 psi)- Head
Min.: 0.1 m
(0'03" )Max.: 4,000 m
(13123'04" )- Fluid temperature
Min.: 2 °C
(35.6 °F)Max.: 200 °C
(392 °F)
Description
Horizontal high-pressure barrel-type pumps with radial impellers, single-entry and double-entry, multistage, with flanges or weld end nozzles to DIN and ANSI.
Benefits
High operating reliability:
For balancing by double drum: residual axial thrust absorbed by pivoted segmental thrust bearing
Optimised casing design regarding the distribution of forces
Adaptation of pump casing to rotor deflection line
Long service life
Prevention of wear at the thrust bearing by axial forces being transmitted to the bearing housing via a cardanic ring
Low NPSH value by using suction impeller as standard
Service-friendly: pump cartridge can be replaced without dismantling the pump, and wear parts can be serviced without opening the pump.
Reduced operating costs by high efficiency (cellular surface wear rings)
