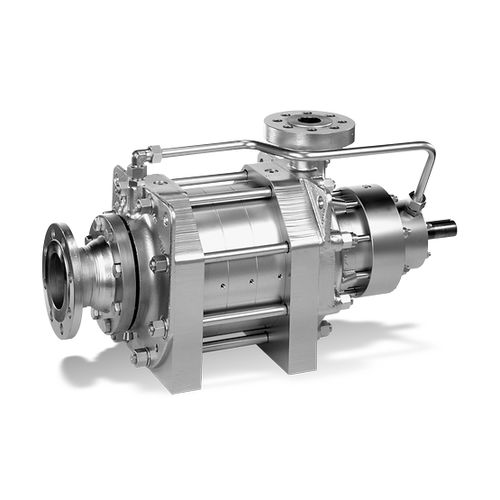

Water pump HGM
condensateelectriccentrifugal

water pump
water pump
Add to favorites
Compare this product

Characteristics

Media
water, condensate
Operation
electric
Technology
centrifugal
Domain
industrial
Other characteristics
radial, horizontal mount, multi-stage, suction, lubricated, axial, multicellular
Applications
feed, handling, for power stations, boiler supply, discharge, boiler, high-pressure, transport
Flow

Max.: 274 m³/h (9,676.2187 ft³/h)

Min.: 8 m³/h (282.5173 ft³/h)

Pressure

Max.: 140 bar (2,030.528 psi)

Min.: 0 bar (0 psi)

Head

Max.: 1,400 m (4593'02")

Min.: 200 m (656'02")

Power

1,200 kW (1,631.55 hp)

Description

HGM Main applications Boiler feed systems Energy General Processes Industry engineering Mining Power Stations 100 MW Process Steel Technical data Q max 274.0 m³/h H max 1,400.0 m Design Horizontal radially split product-lubricated multistage ring-section pump with radial impellers, axial and radial single-entry inlet. Application Pumping feed water in power stations, boiler feed systems and condensate transport in industrial plants. Overview of technical data Q (50Hz) - 8.0 – 274.0 (m³/h) H (50Hz) - 200.0 – 1,400.0 (m) Type of bearing - Plain bearings Casing partition - Radially split Drive frequency - 50 Hz /60 Hz Type of drive - Electric motor, turbine Drive voltage - Low voltage, high voltage Type of first impeller - Closed / Radial No. of impeller entries - Single entry Other impeller types - Closed / Radial Type of installation - Long-coupled Type of coupling - Direct Type of lubrication - Product lubrication Max. permissible fluid temperature - 160.0 (°C) Nozzle position - Variable Maximum operating pressure - PN 64, PN 100, PN 160 Pump set location - Dry installed Suction characteristics - Non-priming Type of connection - Flange Type of discharge casing - Annular casing
