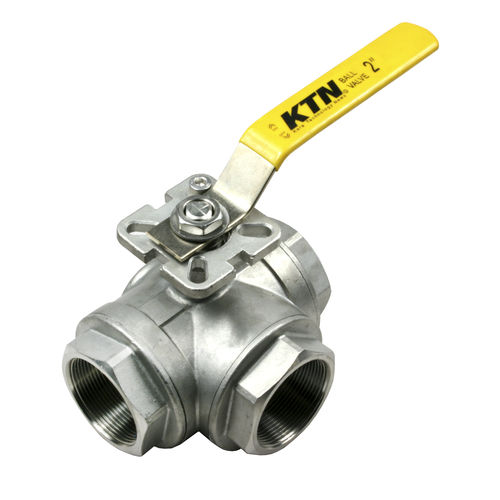

Ball valve 111L/Tlevercontrolshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- control, shut-off
- Media
- for water, for oil, for sludge, for chemical products, for fuel, for liquefied petroleum gas, for LPG, petroleum, for petroleum
- Body
- threaded, 3-piece, stainless steel
- Applications
- for industrial applications
- Number of channels
- 3-way
- Other characteristics
- full-flow
- DN
Min.: 8 cm
(3.15 in)Max.: 100 cm
(39.37 in)- Pressure
63 bar
(913.7 psi)- Temperature
Min.: -25 °C
(-13 °F)Max.: 180 °C
(356 °F)
Description
The KTN 111L / T is our 3-way, full bore, BSP thread ball valve. The range is from 1/2 ″ to 2 ″ (inches). Designed to conduct aqueous media, oil and gas. Its pressure range: PN63. The working temperature range covers -25ºC to + 180ºC. The valve has 4 seats in PTFE with 15% fiberglass.
