Ball valve manualshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- shut-off
- Media
- for water, for oil, for sludge, for chemical products, for fuel, for liquefied petroleum gas, for LPG, petroleum, for petroleum
- Body
- threaded, 2-piece, stainless steel
- Applications
- for industrial applications
- Other characteristics
- ISO, full-flow
- DN
Max.: 50 mm
(1.969 in)Min.: 8 mm
(0.315 in)- Pressure
63 bar
(913.7 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description

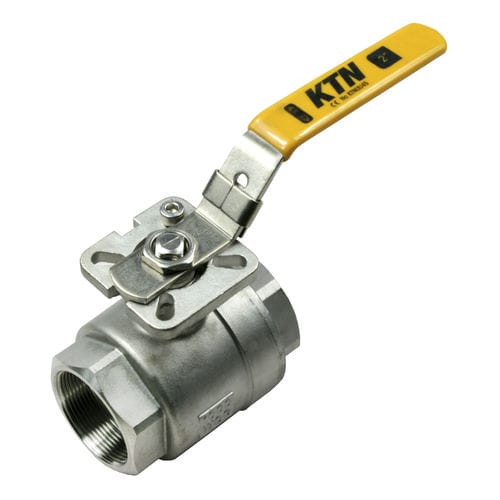

The KTN 1112 MP is our 2-piece, full bore, bsp threaded, flanged ball valve for actuator mounting. The range is from 1/4 ″ to 2 ″ (inches). Its pressure range is: PN63. The working temperature range covers -20ºC to + 180ºC. The valve has a 15% fiberglass PTFE seat and washers.
