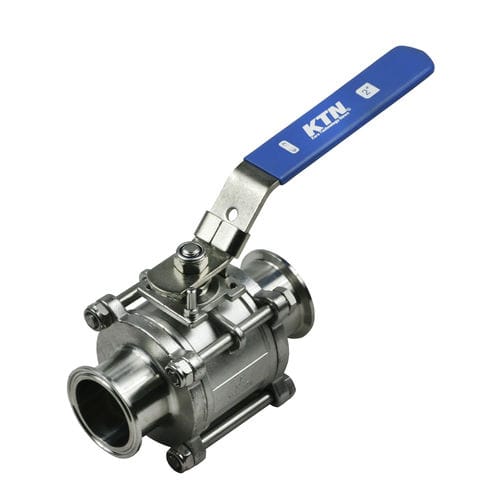

Ball valve 191Mmanualfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control, shut-off
- Media
- for water, for oil, for liquid food products and beverages, for chemical products
- Applications
- for the chemical industry, for the food industry, for hygienic applications, laboratory, sanitary
- Material
- stainless steel
- Other characteristics
- ISO, standard, DIN, with tri-clamp connection
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
63 bar
(913.7 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
AISI 316L stainless steel body. Integral seats and shaft seals: PTFE PN-63 (1000 wog). For food grade sanitary use. Interior polished. Flange for mounting ISO5211 actuators, ISO 2852 clamp ports. Working temperature: -20ºC to + 180ºC. Explosion proof stem.
