Vacuum evaporator RE-LA-20

rotarylaboratoryfor liquids

Product overview

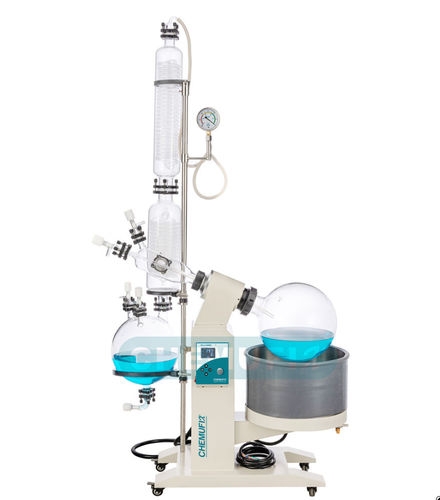

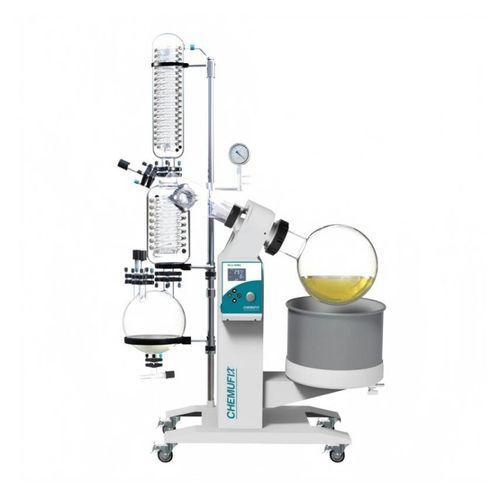

20 L rotary evaporator RE-LA-20 manufactured in China, suitable for hemp oil extraction. Available with a heating water bath (oil bath optional) and in capacities from 5 to 50 L. The RE-LA series large-capacity rotary evaporators feature a large-diameter evaporation flask and increased evaporation area for efficient distillation in small-scale biological, pharmaceutical, chemical and food applications.

Application & system composition
Designed to integrate with supporting equipment such as recycled-water multi-use vacuum pumps, diaphragm pumps, low-temperature cycle (vacuum) pumps, circulating coolers, constant-temperature circulators and low-temperature cooling liquid circulating pumps. The 20 L model is specifically recommended for hemp oil extraction.

Features

• Optional explosion-proof device available.
• Patented dual rotating seal of PTFE and fluorine rubber to ensure high vacuum performance.
• Imported advanced frequency control system and precise, reliable temperature control.
• Vacuum switching valve enables continuous collection without breaking system vacuum.
• Water bath (oil bath optional) with electric and manual lifting support for easy operation.
• PTFE discharge valve for corrosion resistance and contamination-free discharge.
• Optional additional set of glassware available.

Technical data (summary)
Model | RE-LA-20
Power supply | 220V / 50Hz
Total power | 5100 W
Rotary motor | 60W 1/5
Lifting motor | 40W 1/12.5
Heating power | 5000 W
Ultimate vacuum | 0.095 MPa
Rotary flask capacity | 20 L (diameter Φ355 mm, port Φ95 flange)
Collect flask capacity | 10 L (diameter Φ352 mm; upper ports: Φ60 & Φ35×2; down port: Φ50 flange)
Rotary speed | 0–120 rpm
Temperature control range | RT to 180°C, accuracy ±1°C
Bath lifting distance | 150 mm
Condenser size | Main: Φ130×700H; Auxiliary: Φ160×530H
Condenser area | 0.94 (0.46 + 0.48) m²
Multifunction port | Φ35 flange, glass + PTFE valve, feed nozzle OD 12 mm
Discharge valve flange | Φ50 mm; discharge nozzle OD 20 mm; ground distance 210 mm
Bath size | Φ450×260H (approx. 41 L capacity)
Machine size (W×D×H mm) | 1210 × 610 × 2170
Net weight | 78 kg
Packing size (W×D×H mm) | 1050 × 530 × 1215
Volume | 0.68 m³
Gross weight | 110 kg

Specifications

• Series: RE-LA series
• Model example: RE-LA-20 (20 L rotary flask)
• Voltage / Frequency: 220V / 50Hz
• Total power: 5100 W (heating 5000 W)
• Rotary speed: 0–120 rpm
• Temperature range: RT to 180°C, accuracy ±1°C
• Ultimate vacuum: 0.095 MPa
• Bath capacity: ~41 L; bath size Φ450×260H
• Machine dimensions (W×D×H): 1210×610×2170 mm
• Net weight: 78 kg; Gross weight: 110 kg
