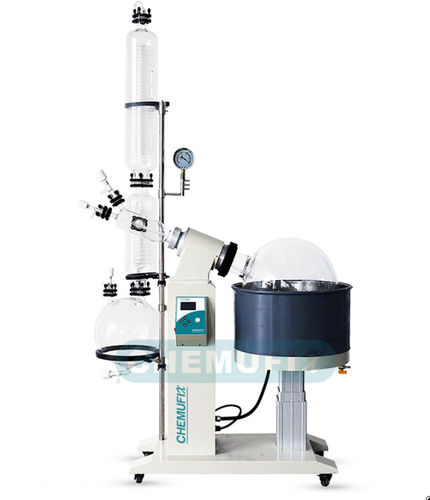

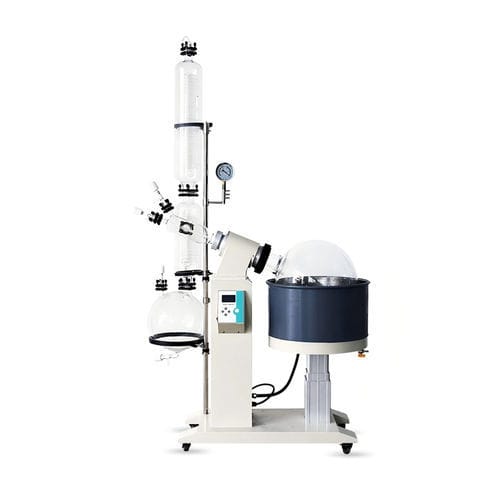

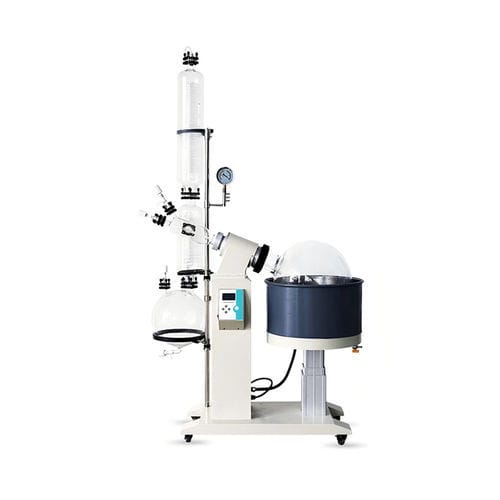

Vacuum evaporator RE-LA-50

rotarylaboratoryfor sample concentration

Product overview
RE-LA Series rotary evaporator is designed for large-capacity and large-diameter evaporation flasks, increasing evaporation area and efficiency. It features a vacuum stainless-steel water bath (oil bath optional) with rotating-edge heating to improve solution evaporation and diffusion. The system is suitable for biological, pharmaceutical, chemical and food laboratories as well as small-scale production. The RE-LA-50 (50 L) model is especially suitable for heavy oil extraction.

Features

• Optional explosion-proof configuration
• PTFE and fluorine rubber dual rotating seal (patented) for high vacuum integrity
• Imported frequency-conversion motor control and digital temperature control for accurate operation
• Vacuum switching valve for continuous collection without interrupting vacuum distillation
• Electric lift for water/oil bath; manual lift support available
• PTFE discharge valve — corrosion resistant and contamination-free
• Optional spare glassware set

Technical data (summary)

• Models: RE-LA-5 / RE-LA-10 / RE-LA-20 / RE-LA-50
• Rotary flask capacity: 5 L / 10 L / 20 L / 50 L
• Flange diameter: Φ50 mm / Φ95 mm / Φ95 mm / Φ125 mm
• Collecting bottle capacity: 3 L / 5 L / 10 L / 20 L
• Rotary speed: RE-LA-5 10–140 r/min; RE-LA-10/20 10–130 r/min; RE-LA-50 10–110 r/min (frequency conversion)
• Rotary motor power: 40 W / 90 W / 120 W / 120 W
• Condensing tube: vertical double serpentine (small models); main+auxiliary highly efficient three-circuit (large models)
• Bath temperature range: water bath RT–99°C; oil bath option RT–180°C
• Vacuum: approx. 399.9 Pa (below 3 mmHg)
• Evaporation capacity (water/alcohol): RE-LA-5 ≥2 L/h / ≥4 L/h; RE-LA-10 ≥3.2 L/h / ≥6.5 L/h; RE-LA-20 ≥5 L/h / ≥11 L/h; RE-LA-50 ≥9 L/h / ≥19 L/h
• Elevating stroke: RE-LA-5 0–150 mm; RE-LA-10 0–160 mm; RE-LA-20 0–190 mm; RE-LA-50 0–230 mm
• Power supply: RE-LA-5/10/20 220–240V/50Hz; RE-LA-50 380V/50Hz (model dependent)
• Total power: RE-LA-5 2.2 kW; RE-LA-10 4.8 kW; RE-LA-20 6.3 kW; RE-LA-50 8.3 kW
• Dimensions (mm): RE-LA-5 765×400×1070; RE-LA-10 920×550×1700; RE-LA-20 1250×600×2100; RE-LA-50 1320×770×2340

Technical specifications

• Model: RE-LA-50
• Rotary bottle capacity: 50 L
• Collecting bottle capacity: 20 L
• Flange diameter: Φ125 mm
• Rotary speed: 10–110 r/min (stepless frequency conversion)
• Evaporation capacity (water): ≥9 L/h (typical)
• Evaporation capacity (alcohol): ≥19 L/h (typical)
• Temperature range: RT–99°C (water); RT–180°C (oil option)
• Vacuum achievable: approx. 399.9 Pa (below 3 mmHg)
• Elevating stroke: 0–230 mm; elevating mode: electric (electric & manual options)
• Power supply: 380V/50Hz (model dependent)
• Total power: ≈8.3 kW
• Construction: stainless-steel water bath (oil option), PTFE discharge valve, PTFE & fluorine rubber dual rotating seal
