Rotary evaporator RE-2000 series

laboratoryfor liquidsfor solvents

Description

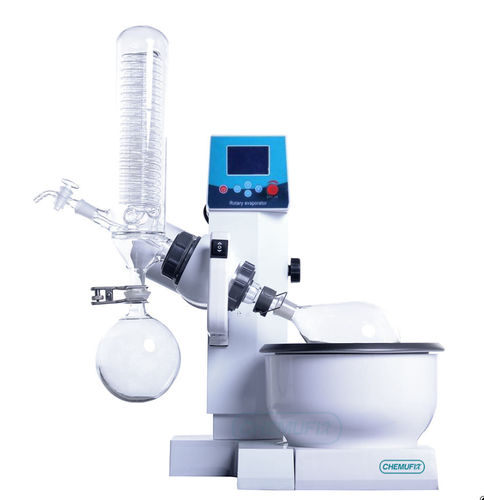

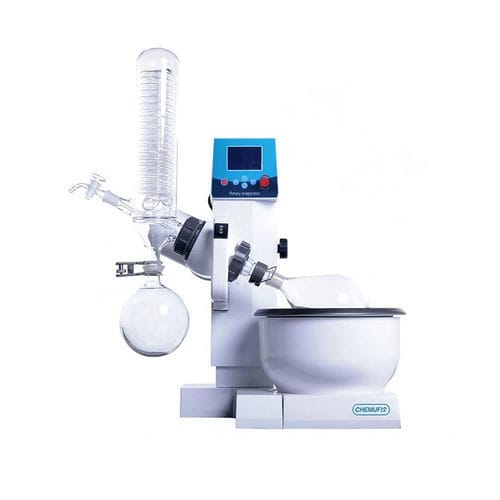

The RE-2000 Series rotary evaporator (0.5–2 L range) is a laboratory instrument for efficient solvent evaporation and concentration. It features a Teflon composite water bath with fully enclosed heating, intelligent temperature control and an LCD user interface. The unit supports automatic lifting for safe, repeatable operation and can be adapted to specific laboratory requirements.

Features

• Intelligent temperature control with digital/LCD display and blue backlight human-machine interface.
• High-performance single-chip microcontroller for stable control and upgradable software interface.
• Teflon composite bath with fully enclosed heating; optional 304 stainless steel bath or oil bath (0–400 ℃).
• Automatic host lifting with fast action; lifting travel 0–150 mm (typical listing: 120 mm travel).
• Vertical condenser (85 × 430 mm), PT100 temperature sensor and effective Teflon fluoride sealing.
• Support for continuous feeding valve and optional configurations to meet specific R&D or production needs.

Specifications (as listed on the product page)

• Models: RE-2000A | RE-2000B | RE-2000E
• Rotating flask volume: 1 L (24# standard mouth)
• Receiving flask volume: 1 L (35#)
• Glass material: GG-17
• Bracket material: Aluminium alloy
• Bath material: Teflon composite pot with fully closed heating (option: 304 stainless steel)
• Condenser: Vertical condenser 85 × 430 mm
• Sealing: Teflon fluoride seal

Technical specifications

• Motor power (listed): 40 W
• Rotating speed: 0–180 rpm
• Heating power: 1.5 kW
• Temperature range: 0–99 ℃; control accuracy: ±1 ℃
• Lifting power: 15 W; lifting travel: 120 mm (device notes up to 0–150 mm)
• Voltage / Frequency: 220 V / 50 Hz
• Dimensions (W × D × H): 660 × 420 × 830 mm
• Packing dimensions: 630 × 560 × 540 mm; Packing weight: 26 kg
• Display / control: digital/LCD display, e-cVt speed regulation mode
• Temperature sensor: PT100
