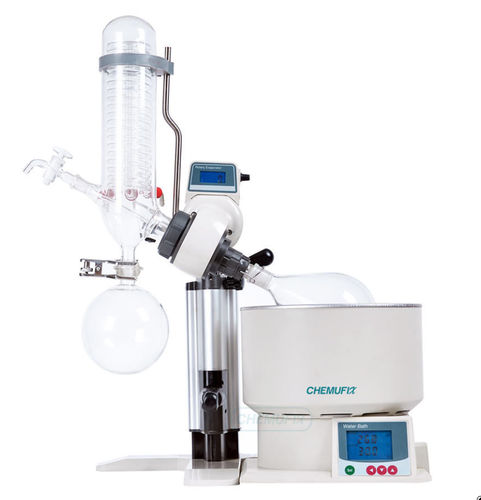

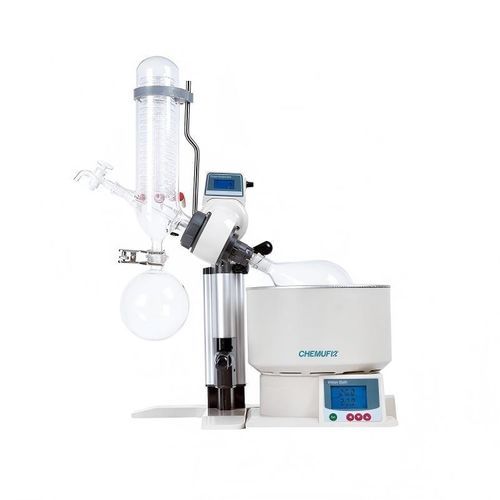

Rotary evaporator RE-2S-VD

laboratoryfor sample concentrationfor liquids

Overview
RE-2 series rotary evaporator for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.

Usage
RE-2 series 1L rotovap rotary evaporator for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. The product can be integrated with vacuum pumps, low temperature circulating pumps, circulating coolers and constant temperature circulators to form a complete system.

Features

• Can be changed to oil bath (optional)
• Additional set glassware is optional
• Double sealing with Teflon (PTFE) and Viton rubber to ensure high vacuum degree
• The air extraction nozzle of condenser is set down for safer vacuum pipe connection
• Building block design is easy to extend
• Easy operation of lifting; moves up and down smoothly and is easy to lock
• Dedicated electric motor, worm and gear drive steadily
• Speed display for visual and easy operation
• Temperature adopts PID control to ensure accurate temperature control
• Separation of bath and mainframe makes configuration flexible

Technical data
Model: RE-2S-VD 1l rotovap
Glass: GG-17
Support Material: aluminium alloy
Boil material: Aluminum alloy + Teflon composite pot, fully enclosed and heated
Rotary bottle volume: 1L
Collection bottle volume: 1L
Rotary power: 40W
Spin speed: 10-180rpm
Evaporation capacity: 20ml/min (Evaporation of water)
Vacuum: 0.098Mpa
Heating power: 1.5KW
Bath pot temperature range: 0-99°C
Temperature control accuracy: ±1°C
Elevation stroke: 100mm + 150mm (Slide lift + Manual lift)
Voltage / Frequency (V/Hz): 220V/50Hz
Shape Size: 560*320*660mm
Bath pan inner size: Φ260*h140
Weight: 10KG
Speed regulating mode: Electronic stepless speed adjustment LCD display
Temperature Display: LCD display
Temperature control method: Smart temperature control
Seal way: Teflon + Fluoride Double Seal Ring
Lift mode manual: Manual Weight Balancing
Condenser: Vertical Condenser Double Snake Tube
Continuous Feeds: 19# Label feeding valve
Safety function: Overload Protection Function (Safety Pipe)

Caractéristiques / Spécifications techniques

• Model: RE-2S-VD
• Glass material: GG-17
• Rotary bottle: 1 L
• Collection bottle: 1 L
• Motor power: 40 W
• Speed range: 10–180 rpm (electronic stepless adjustment, LCD display)
• Heating power: 1.5 kW; bath temperature range 0–99°C; PID temperature control; display: LCD
• Evaporation capacity (water): approx. 20 ml/min
• Vacuum capability: 0.098 MPa (with appropriate vacuum pump)
• Lift: 100 mm (slide) + 150 mm (manual) with manual weight balancing
• Sealing: Teflon (PTFE) + fluoride (Viton) double seal ring
• Condenser: vertical double snake tube
• Bath inner size: Φ260 × h140 mm
• Overall dimensions: 560 × 320 × 660 mm; weight: 10 kg
• Power / Frequency: 220 V / 50 Hz
