Rotary evaporator RE-LA series

laboratoryfor liquidsfor solvents

Large Capacity Rotary Evaporator

Usage

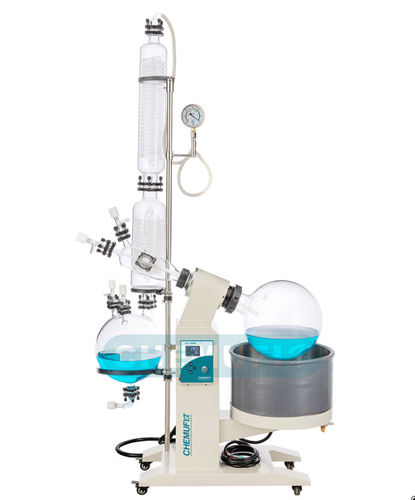

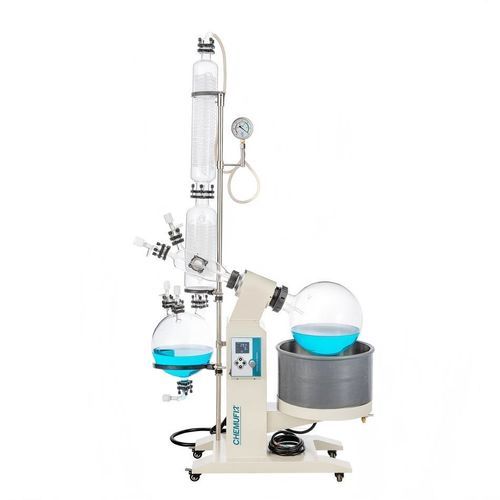

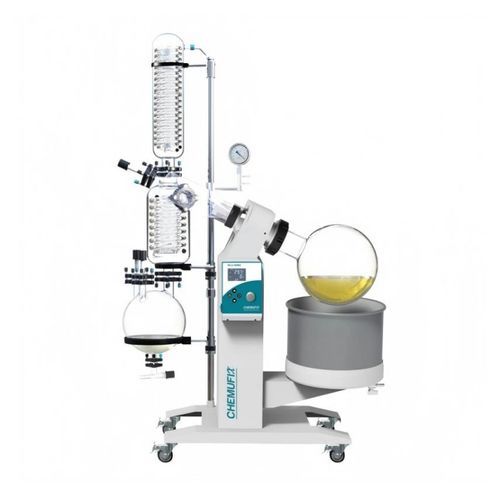

RE-LA Series large capacity rotary evaporator with large-diameter rotary flask and large evaporation area. Vacuum water bath with rotating-edge heating improves evaporation diffusion efficiency. Suitable for small-scale applications in biological, pharmaceutical, chemical and food laboratories and production. The system can be supported with recycled-water vacuum pumps, diaphragm pumps, low-temperature cycle (vacuum) pumps, circulating coolers, constant-temperature circulators and low-temperature cooling liquid circulating pumps.

Features

• Explosion-proof device optional.
• Teflon (PTFE) and fluorine rubber dual rotating seal (patented) to ensure high vacuum.
• Imported advanced frequency control system and accurate, reliable temperature control system.
• Vacuum switching valve allows continuous collection of distillate without affecting system vacuum.
• Water bath (oil bath optional) with electric lift; manual lift option available; easy to operate.
• PTFE discharge valve: corrosion-resistant and pollution-free.
• Additional sets of glassware optional.

Technical data (table)
Model | RE-LA-5 | RE-LA-10 | RE-LA-20 | RE-LA-50
Capacity of Rotary Bottle | 5L | 10L | 20L | 50L
Flanged diameter | Φ50mm | Φ95mm | Φ95mm | Φ125mm
Capacity of Collecting bottle | 3L | 5L | 10L | 20L
Rotary control | Digital display, frequency conversion stepless | Digital display, frequency conversion stepless | Digital display, frequency conversion stepless | Digital display, frequency conversion stepless
Rotary speed | 10 to 140 r/min | 10 to 140 r/min | 10 to 130 r/min | 10 to 110 r/min
Power of rotary motor (W) | 40W | 90W | 120W | 120W
Condensing tube | Vertical double serpentine tube | Vertical, main + auxiliary cooling and highly efficient three circulating | Vertical, main + auxiliary cooling and highly efficient three circulating | Vertical, main + auxiliary cooling and highly efficient three circulating
Water/Oil bath | Stainless steel water bath (can be changed to oil bath) | Stainless steel water bath (can be changed to oil bath) | Stainless steel water bath (can be changed to oil bath) | Stainless steel water bath (can be changed to oil bath)
Temperature range | Digital display, RT~99°C (oil bath RT~180°C) | Digital display, RT~99°C (oil bath RT~180°C) | Digital display, RT~99°C (oil bath RT~180°C) | Digital display, RT~99°C (oil bath RT~180°C)
Vacuum degree | 399.9 Pa (below 3 mmHg) | 399.9 Pa (below 3 mmHg) | 399.9 Pa (below 3 mmHg) | 399.9 Pa (below 3 mmHg)
Evaporating capability | Water ≥ 2 L/h; Alcohol ≥ 4 L/h | Water ≥ 2 L/h; Alcohol ≥ 4 L/h | Water ≥ 3.2 L/h; Alcohol ≥ 6.5 L/h | Water ≥ 5 L/h; Alcohol ≥ 11 L/h / Water ≥ 9 L/h; Alcohol ≥ 19 L/h (larger model ranges indicated)
Elevating mode | Electric | Electric | Electric (or manual) | Electric & manual
Elevating stroke | 0~150 mm | 0~150 mm | 0~160 mm | 0~190 mm / 0~230 mm (largest)
Power supply | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 380V/50Hz (for some configurations)
Power (total) | 2.2 KW | 2.2 KW | 4.8 KW | 6.3 KW / 8.3 KW (larger models)
Dimensions (mm) | 765L × 400W × 1070H | 920L × 550W × 1700H | 1250L × 600W × 2100H | 1320L × 770W × 2340H

Specifications / Technical characteristics

• Series: RE-LA Series (models: RE-LA-5, RE-LA-10, RE-LA-20, RE-LA-50).
• Rotary flask capacity: 5 L / 10 L / 20 L / 50 L (depending on model).
• Collecting bottle capacity: 3 L / 5 L / 10 L / 20 L (depending on model).
• Flange diameters: Φ50 mm (RE-LA-5), Φ95 mm (RE-LA-10/20), Φ125 mm (RE-LA-50).
• Rotary control: Digital display with stepless frequency conversion control.
• Rotary speed ranges: up to 140 r/min (smaller models) down to 110 r/min (largest).
• Rotary motor power: from 40 W up to 120 W (varies by model).
• Condensation design: vertical double/serpentine or main+auxiliary/high-efficiency multi-circulating condensers.
• Water bath: stainless steel water bath standard; oil bath optional (higher temperature range for oil).
• Temperature range: Digital RT to 99°C (oil bath option RT to 180°C).
• Vacuum capability: down to ~399.9 Pa (below 3 mmHg).
• Evaporation capacity (approx): Water 2–9 L/h (model-dependent); Alcohol higher (approx. 4–19 L/h depending on model).
• Elevating: electric lift standard; some models offer electric & manual combination; strokes from 0–150 mm up to 0–230 mm.
• Power supply & consumption: typical 220–240V/50Hz for many models; some industrial configurations 380V/50Hz; total power ranges from ~2.2 kW up to ~8.3 kW depending on model and configuration.
• Dimensions: model-dependent (examples: RE-LA-5: 765×400×1070 mm; RE-LA-10: 920×550×1700 mm; RE-LA-20: 1250×600×2100 mm; RE-LA-50: 1320×770×2340 mm).
• Options & accessories: explosion-proof construction, additional glassware sets, alternate vacuum pump types, circulating coolers or chillers, and other supporting devices.
