Vacuum evaporator 100L

rotarylaboratoryfor liquids

Overview

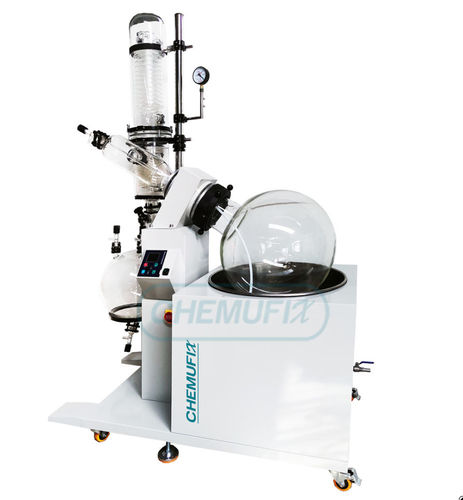

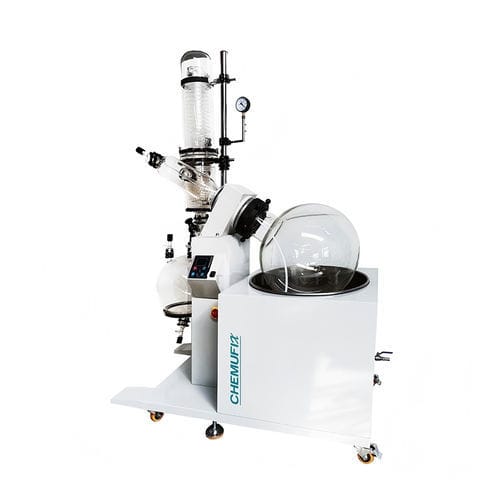

The RE-LA-100 rotary evaporator is a laboratory-scale evaporation system with a 100 L evaporating flask, electric lifting mechanism and LCD control for precise operation. Designed for solvent recovery, concentration and heat-sensitive material processing in R&D and production environments.

Key features

• Electric lifting for controlled vertical movement of the evaporation assembly and safe flask handling
• Constant-temperature heating bath with digital control enabling rotary vacuum film formation and efficient evaporation
• Integrated LCD for setpoint display and operational monitoring
• Modular condenser arrangement with Main condenser 2.7°C and Sub condenser 0.3°C for effective solvent condensation and recovery
• Teflon seal material for chemical resistance
• Stainless steel (SUS 304) heating bath and chassis for laboratory-grade durability

Technical specifications

• Product name: 100L Rotary Evaporator
• Model: RE-LA-100
• Vacuum: 0.098 MPa
• Temperature range: RT+5 – 180°C
• Rotation speed: 10 – 180 rpm
• Motor power: 400 W
• Main condenser: 2.7°C; Sub condenser: 0.3°C
• Evaporating flask capacity: 100 L (glass)
• Collecting flask: 50 L (with draining valve)
• Seal material: Teflon
• Heating bath: 134.7 L (90 L net), SUS 304
• Overall dimensions (W x D x H): 1700 x 850 x 2620 mm; Weight: 330 kg

Applications

• Solvent recovery and concentration in chemical and pharmaceutical laboratories
• Crystallization and separation of heat-sensitive materials
• Reflux extraction where applicable (model-dependent)
• Pilot production and R&D for biotech, food and specialty chemical sectors

Construction & materials

• Evaporating and collecting flasks: borosilicate glass
• Frame and heating bath: SUS 304 stainless steel
• Seals: Teflon for corrosion resistance against common solvents
• Critical seals and electronic components sourced from established suppliers
