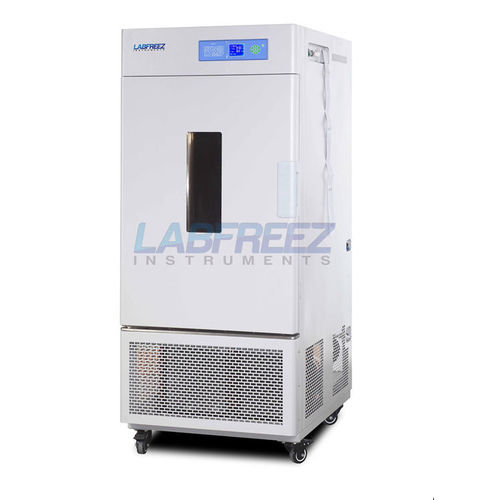

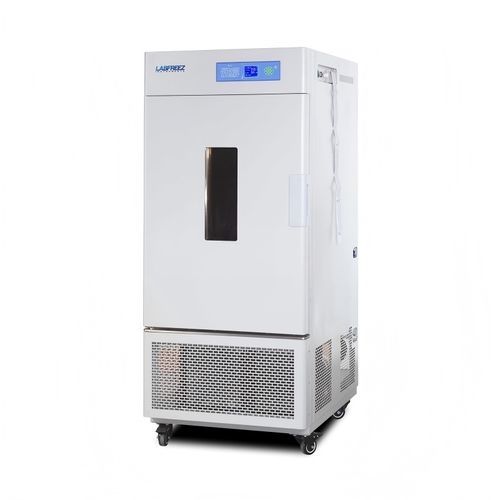

Thermostatic test chamber MSC-TH series

climatichumiditytemperature

Product overview
Medicine Stability Testing Chamber for temperature, humidity and illumination control. Microprocessor control with LCD display. Stainless steel inner chamber with semicircular arcs at corners for easy cleaning. Even air circulating system and optional UV sterilization and safety/monitoring accessories.

Key features

• Temperature, humidity and illumination control options
• Capacity range: 80L to 400L (multiple models)
• Temperature range: 0 ~ 65°C
• Humidity range: 40 ~ 95%RH
• Illumination range: 0 ~ 6000 LX adjustable (≤ ±500 LX)
• Microprocessor control with LCD display (programmable touch screen optional)
• Even air circulating system
• R134a refrigerant, imported compressors and fan motor (dual compressors on larger models)
• Over-temperature and temperature-difference alarms
• Imported humidity sensor suitable for high-humidity environments
• Balance temperature and humidity adjusting system
• 25 mm connection hole on left side for test operation and temperature measurement
• Optional UV light system for periodic chamber sterilization
• Optional independent audible and visible temperature-limiting alarm system
• Optional RS485 connector for computer recording and monitoring of parameters and variations

Programmable touch screen (optional)

• Large LCD screen to display multiple data simultaneously
• English operation menu and display of current data curves
• Program capacity: 100 groups with up to 1000 periods and 999 circulations; max timing per period 99 hours 59 minutes
• Auto lock after setting data
• Programmable via computer through RS-485 or RS-232 (optional)

Safety devices

• Compressor over-heat protection
• Fan over-heat protection
• Over-temperature alarm system
• Over-compressing protection
• Over-load protection
• Water lack protection

Specifications (summary table)
Type: Temperature & humidity control | Temperature & humidity & illumination control | Temperature & illumination control
Model examples: MSC-TH80; MSC-TH150; MSC-TH250; MSC-THL150; MSC-THL250; MSC-TL150; MSC-TL250; MSC-TL400
Temperature range: 0 ~ 65°C (with illumination: 0 ~ 65°C; without illumination: 10 ~ 50°C)
Temperature fluctuation / uniformity: ±0.5°C / ±2°C
Humidity range / accuracy: 40 ~ 95%RH / ±3%RH (for humidity-capable models)
Illumination range / accuracy: 0 ~ 6000 LX adjustable ≤ ±500 LX (for illumination-capable models)
Timer: 1 ~ 99 hours per segment (programmable options available)
Adjustment type: Balance control
Refrigeration: Dual imported hermetic compressors (auto-switchable) — smaller MSC-TH80 uses one compressor
Controller: LCD (programmable touch-screen optional)
Sensor: Pt100 and humidity sensor (humidity-capable models); Pt100 for temperature-only models
Ambient working range: RT+5 ~ 30°C
Power supply: AC220V ±10%, 50Hz
Power consumption examples: 1500W / 1800W / 1900W / 2200W / 2300W / 2400W / 2600W / 3200W depending on model
Capacity examples: 80L; 150L; 250L; 400L (model dependent)
Inner size (W×D×H mm) examples: 401×400×500; 551×405×670; 601×500×830; 701×550×1140 (model dependent)
Overall dimensions (W×D×H mm) examples: 555×790×1080; 695×805×1530; 745×890×1680; 955×850×1850 (model dependent)
Shelves: 2 / 3 / 3 pcs depending on model; larger models 3 / 4 pcs
Built-in printer: Yes (available on models listed)
Programmable: Yes (on models with program controller)
Remark: Illumination can be manual stepless adjustable for TL/THL; light intensity monitor and top illumination device available.

Caractéristiques / spécifications techniques

• Model family: MSC-TH Series
• Control: Microprocessor / LCD; optional programmable touch screen
• Temperature range: 0 ~ 65°C (model-dependent)
• Humidity range: 40 ~ 95%RH (humidity-capable models)
• Illumination: 0 ~ 6000 LX adjustable (illumination-capable models)
• Capacity: 80L, 150L, 250L, 400L (various models)
• Inner chamber: Stainless steel with semicircular arc corners
• Air circulation: Even air circulating system
• Refrigerant / compressors: R134a; dual imported hermetic compressors (auto-switchable) except smallest model
• Safety: compressor and fan over-heat protection, over-temperature alarm, over-compressing and overload protection, water-lack protection
• Options: paperless/high-precision recorder, wired alarm monitoring, SMS alarm, UV disinfection system, shelf illumination, IQ/OQ/PQ (3Q)
