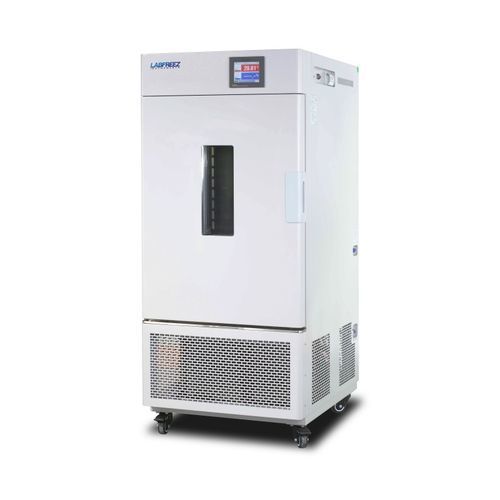

Climate chamber MSC-THP series

humiditytemperaturelight

Short description

• Programmable stability testing chamber for pharmaceutical products with temperature, humidity and optional illumination control
• Capacity options: 80 L, 150 L, 250 L
• Temperature range: 0–65°C; Humidity range: 40–95% RH (±3% RH)
• Illumination (optional): 0–6000 LX (adjustable ≤±500 LX)
• Models: MSC-THP80 / MSC-THP150 / MSC-THP250 (without illumination); MSC-THLP150 / MSC-THLP250 (with illumination)

Applications

• Accelerated and long-term stability testing for pharmaceuticals and biologics
• Quality control, R&D and stability storage
• Environmental simulation for product shelf-life and packaging tests

Features

• Microprocessor control with touch LCD and English operation menu
• Stainless steel inner chamber with rounded corners for easy cleaning
• Uniform air circulation system for temperature/humidity consistency
• R134a refrigerant with two imported hermetic compressors and fan motor (THP80: one compressor)
• Imported humidity sensor optimized for high-humidity environments
• Balance-type temperature and humidity control
• Left-side 25 mm access port for probes and external testing
• Optional UV periodic sterilization system
• Optional independent audible/visual temperature-limiting alarm
• Optional RS-485/RS-232 interface for data recording and remote programming

Programmable touch screen

• Large LCD showing multiple parameters and real-time data curves
• English menu and display of current data curves
• Programmable: up to 100 groups with 1000 periods, 999 cycles; max period time 99 h 59 min
• Auto-lock after setting to prevent unintended changes
• PC programmable via RS-485 or RS-232

Safety devices

• Compressor overheat protection
• Fan overheat protection
• Over-temperature alarm
• Over-compression and overload protection
• Water shortage protection

Specifications
Type: Temperature & humidity | Temperature, humidity & illumination
Models: MSC-THP80 / MSC-THP150 / MSC-THP250 | MSC-THLP150 / MSC-THLP250
Temperature range: 0–65°C | With illumination: 0–65°C; Without illumination: 10–50°C
Temperature fluctuation / uniformity: ±0.5°C / ±2°C
Humidity range / accuracy: 40–95% RH / ±3% RH
Illumination range / accuracy: — | 0–6000 LX adjustable ≤±500 LX
Timer: 1–99 hours per segment
Control type: Balance
Refrigeration: Dual imported hermetic compressors (auto-switchable) (THP80: one compressor)
Controller: Touch LCD
Sensors: Pt100 & humidity sensor
Ambient temperature: RT+5～30°C
Power supply: AC 220V ±10% 50Hz
Power consumption: 1900W / 2200W / 2400W | 2300W / 2600W
Capacity: 80 L / 150 L / 250 L | 150 L / 250 L
Inner size (W×D×H mm): 401×400×500 / 551×405×670 / 601×500×830 | 551×405×670 / 601×500×830
External dimensions (W×D×H mm): 555×790×1080 / 695×805×1530 / 745×890×1680 | 695×805×1530 / 745×890×1680
Shelves: 2 / 3 / 3 pcs | 3 / 3 pcs
Built-in printer: Yes
Programmable: Yes
Safety: Compressor overheating and overpressure protection; Fan overheating protection; Over-temperature protection; Overload protection; Water shortage protection
Remark: THLP series illumination is stepless adjustable; built-top illumination device and light intensity monitor available.

Optional accessories

• MSC0001 — Paperless recorder (high-precision digital recorder)
• MSC0002 — Wired alarm monitoring system
• MSC0003 — SMS alarm monitoring system
• MSC0004 — UV disinfection system
• MSC0005 — Shelf illumination device
• MSC0006 — 3Q validation package (IQ / OQ / PQ)

Technical specifications

• Brand: Labfreez Instruments
• Model series: MSC-THP Series (MSC-THP80, MSC-THP150, MSC-THP250; MSC-THLP150 / MSC-THLP250 for illumination versions)
• Temperature range: 0–65°C
• Humidity range: 40–95% RH (±3% RH)
• Illumination (if equipped): 0–6000 LX (±≤500 LX)
• Available capacities: 80 L, 150 L, 250 L
• Control: Programmable touch LCD, English menu, data curves, group/period/timer programming
• Power supply: AC 220V ±10% 50Hz
• Rated power: approx. 1900W to 2600W depending on model
• Construction: Stainless steel chamber with rounded corner arcs for easy cleaning
• Safety: Over-temperature alarms; compressor, fan and overload protections; water shortage protection
• Interfaces: RS-485 / RS-232 for data recording and programming; built-in printer (standard)
