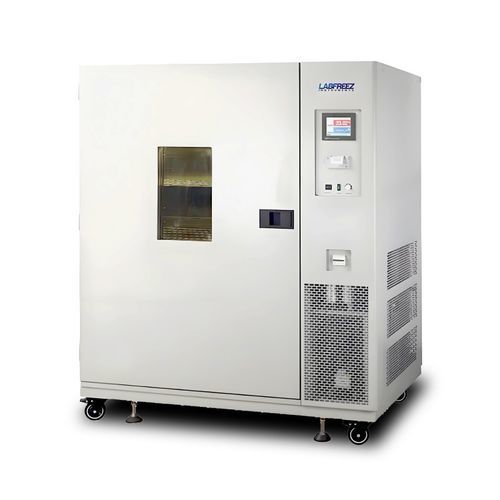

Thermostatic test chamber MSC-TH series

climatichumiditytemperature

Product overview
MSC-TH / MSC-THL series medicine stability test chambers provide controlled temperature, humidity and optional illumination environments for pharmaceutical stability studies, accelerated and long-term stability testing, humidity and light exposure testing. Designed to support GMP-compliant stability protocols in pharmaceutical production and R&D environments.

Features

• CFC-free refrigeration design
• Stainless-steel interior with special sterilization treatment and rounded corners for easy cleaning
• Microcomputer servo controller with digital temperature and humidity display (MSC-TH / MSC-THL)
• LCD touch-screen controller with graphical display of operating status (MSC-THP / MSC-THLP)
• Dual imported compressors with automatic switching for continuous operation
• Frost-free continuous operation
• Imported capacitive humidity sensor for long service life
• Stepless illumination adjustment (THL / THLP series)
• Programmable controller options for complex test profiles (THP / THLP)

Safety features

• Air circulation and heating stop automatically when door is opened
• Automatic control of circulation fan speed
• Independent high/low limit temperature alarm with audible and visual signals
• Temperature deviation alarm, compressor overheat protection, overload and over-voltage protection, water protection
• Wired alarm monitoring interface for integration with facility systems
• Additional protections: fan thermal protection, compressor overpressure protection

Specifications (summary)
Applicable models: MSC-TH / MSC-THP (temperature & humidity) and MSC-THL / MSC-THLP (temperature, humidity & illumination).
Temperature range (without illumination): 0 ~ 65°C; with illumination: 10 ~ 50°C.
Temperature fluctuation / uniformity: ±0.5°C / ±2°C.
Humidity range: 40 ~ 90%RH (±3%RH).
Illumination (THL/THLP): 0 ~ 6000 LX (adjustable), tolerance ≤ ±500 LX.
Refrigeration: two imported compressors with automatic switch for continuous operation.
Controller: MSC-TH / MSC-THL: LCD; MSC-THP / MSC-THLP: programmable LCD touch screen.
Sensors: Temperature Pt100; Humidity capacitive sensor.
Ambient operating temperature: RT+5 ~ 30°C.
Power supply examples: AC220V 50Hz or AC380V 50Hz (model dependent).
Capacities available: 500L, 800L, 1000L, 1500L. Typical shelving: 4 pieces standard.
Options: built-in printer, optional high-precision digital recorder, light intensity monitor, 2 or 3 illumination detectors.

Model variants (summary)
Temperature & Humidity models: MSC-TH500 / MSC-THP500 (500L); MSC-TH800 / MSC-THP800 (800L); MSC-TH1000 / MSC-THP1000 (1000L); MSC-TH1500 / MSC-THP1500 (1500L).
Temperature, Humidity & Illumination models: MSC-THL500 / MSC-THLP500 (500L); MSC-THL800 / MSC-THLP800 (800L); MSC-THL1000 / MSC-THLP1000 (1000L); MSC-THL1500 / MSC-THLP1500 (1500L).

Technical dimensions (examples)

• 500L — Inner: 800×700×900 mm — External: 1000×1100×1860 mm
• 800L — Inner: 965×580×1430 mm — External: 1475×890×1780 mm
• 1000L — Inner: 900×580×1600 mm — External: 1410×890×1950 mm
• 1500L — Inner: 1410×800×1500 mm (variants shown) — External: 1570×1475×2050 mm
