Thermostatic test chamber LFZ-XW series

climatichumiditytemperature

Product overview

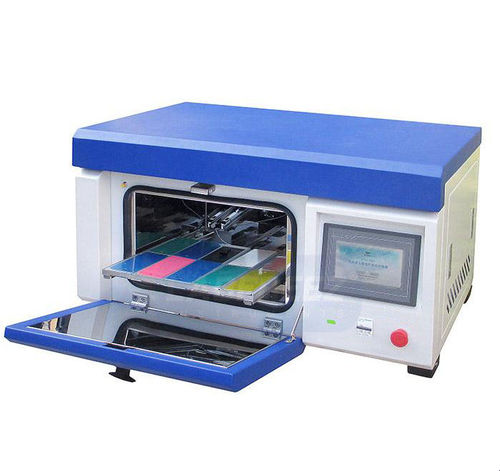

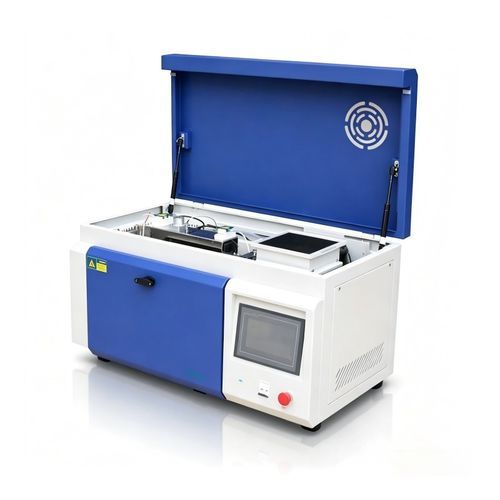

LFZ-XW xenon UV weathering environmental testing chamber for accelerated weathering tests of paints, coatings, plastics, rubber, textiles, materials, cosmetics, pharmaceuticals and food-contact containers. Available in Economic, I and II models with selectable exposure areas and optional radiometer control.

Key features

• Mirror-reflection system provides a large, uniform exposure area to increase irradiance and reduce required exposure time.
• Slide-out sample tray accepts plates, bottles, test tubes, Petri dishes and other special samples for easy loading.
• Interchangeable xenon lamp (compatible with U.S. brand); lamp life up to 1500 hours.
• SIEMENS PLC touch-screen controller for program setup, monitoring and data handling.

Touch screen controller (SIEMENS)

• 9.7-inch touch display with menu-driven interface for intuitive operation.
• Visual setting and display of irradiance, black panel temperature and rain cycles.
• Shows all control parameters, automatic fault diagnosis and lamp attenuation prompts for stable, uniform irradiance.
• Supports selectable industry-standard controllers and up to 10-segment programs.
• Built-in data processing for test records and process playback.

Irradiance automatic monitoring and control system
Automatic irradiance monitoring and control available (optional radiometer models CR20 or RM20).

Testing standards

• Paints/coatings: GB/T 1865-2009; GB/T 16422.2-1999; GB/T 1189-91; ISO 11341
• Automotive: SAE J1885; SAE J1996-0; GMW3414 (Ford Interior)
• Rubber: ISO 4892-2; ASTM D2565
• Textiles: AATCC 16E; AATCC 169 (1); ISO 105-B06; ISO 105-B02
• Materials: ASTM G155-1; ASTM G155-4; ASTM D6551

Specifications

• Model | LFZ-XW Economic | LFZ-XW-I | LFZ-XW-II
• Exposure area | 900 cm2 | 1040 cm2 | 1040 cm2
• Chamber sample size (mm) W×D×H | 460×250×200 | 320×320×320 | 320×320×320
• Overall dimensions (mm) W×D×H | 610×465×520 | 890×580×590 | 890×580×590
• Maximum sample size | 200×450 mm | 310×340 mm | 310×340 mm
• Black panel temp. range | 45°C–90°C; fluctuation ≤ ±2°C
• Humidity (illumination) | — | 10–75% RH | 10–75% RH
• Humidity (dark) | — | 10–95% RH | 10–95% RH
• Ambient temperature | 10–30°C | 10–30°C | 10–30°C
• Irradiance | N/A | 340 nm, 420 nm; 300–400 nm auto control (optional radiometer) | 340 nm, 420 nm; 300–400 nm auto control (optional radiometer)
• Power | 2500 W | 3500 W (max) | 3500 W (max)
• Spray system | No | No | Yes
• Lamp cooling | Air-cooled
• Sample tray | Plate type
• Load capacity | 10 kg
• Power supply | 220 V, 50 Hz

Optional items

• LFZXW0001 — Irradiance meter CR20 (imported)
• LFZXW0002 — Irradiance meter RM20 (China)
• LFZXW0003 — Lab water purifier system
• LFZXW0004 — RS485/232 interface and software
• LFZXW0005 — USB interface
• LFZXW0006 — Printer

Technical characteristics

• Series: LFZ-XW Series
• Application: accelerated weathering for paints, coatings, plastics, rubber, textiles, materials, cosmetics, pharmaceuticals, food-contact containers
• Black panel temperature: 45°C to 90°C; fluctuation ≤ ±2°C
• Irradiance wavelengths: 340 nm and 420 nm standard; 300–400 nm auto control with optional radiometer
• Exposure area options: 900 cm2 (Economic) or 1040 cm2 (I/II)
• Tray capacity: plate-type tray; max sample size up to 310×340 mm (model dependent)
• Power: 2500 W (Economic) up to 3500 W (other models)
• Cooling: air-cooled xenon lamp
• Control: SIEMENS PLC touch screen, programmable segments and data logging
• Power supply: 220 V, 50 Hz
