Thermostatic test chamber MSC-TH series

climatichumiditylight

Product overview

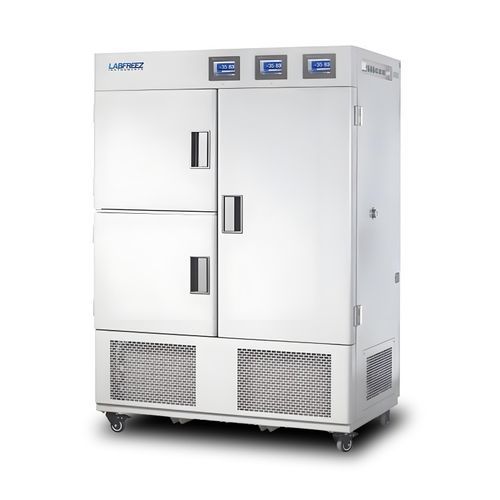

MSC-TH/THL series Medicine Stability Testing Multi-Chamber provides controlled long-term environments for temperature, humidity and illumination required in pharmaceutical stability testing, accelerated studies of new drugs, long-term storage tests, humidity tests and light (photostability) testing. Designed to support GMP-related stability studies in pharmaceutical production.

Short description

• Programmable multi-chamber control of temperature, humidity and illumination
• Overall capacity range: 500 L to 1500 L (multiple-chamber configurations)
• Temperature range: 0–65°C (illumination models: 10–50°C when illumination engaged)
• Humidity range: 40–95% RH
• Illumination (THL models): 0–6000 LX adjustable; accuracy ≤ ±500 LX
• Microprocessor-based programmable touch LCD controller

Features

• CFC-free refrigeration with imported compressors and automatic switching for continuous, frost-free operation
• Stainless steel interior with semi-circular rounded corners for sterilization and easy cleaning
• Microcomputer servo controller with digital temperature and humidity display (MSC-TH/THL series)
• Graphical LCD touch-screen controller for program routines and run observation (MSC-TH/THL series)
• Imported humidity sensor to improve stability and reduce replacement frequency
• Stepless illumination adjustment function on THL models and programmable routines via touch controller

Safety features

• Automatic stop of air circulation and heaters when door is opened
• Automatic control of circulation fan speed
• Independent limit-temperature alarm system with audible and visual signals
• Protections and alarms including temperature deviation alarm, compressor overheat protection, overload protection, over-voltage protection and water protection
• Wired alarm monitoring interface and multiple compressor/fan protection measures

Specifications (table)
Series: MSC-TH/THL
Model examples: MSC-TH200D, MSC-TH300D, MSC-THL200D, MSC-THL300D, MSC-THL425T
Capacity (overall): 500 L to 1500 L depending on configuration; individual chamber capacities from 100 L upward
Temperature range: 0–65°C (with illumination active: 10–50°C)
Temperature stability: fluctuation ±0.4°C; uniformity ±2°C
Humidity range: 40–95% RH; accuracy ±3% RH
Illumination (THL): 0–6000 LX adjustable; accuracy ≤ ±500 LX
Controller: programmable touch LCD (graphical/text); Sensor: Pt100 temperature sensor; imported humidity sensor
Refrigeration: imported compressors with automatic switching for continuous operation
Interior construction: sterilizable stainless steel with semi-circular corners; typical inner sizes W×D×H examples: 500×450×450 mm; 660×520×450 mm; vertical options e.g. 500×450×1000 mm
Shelves: typically 2 shelves per chamber (varies by model)
Illumination: available on THL models
