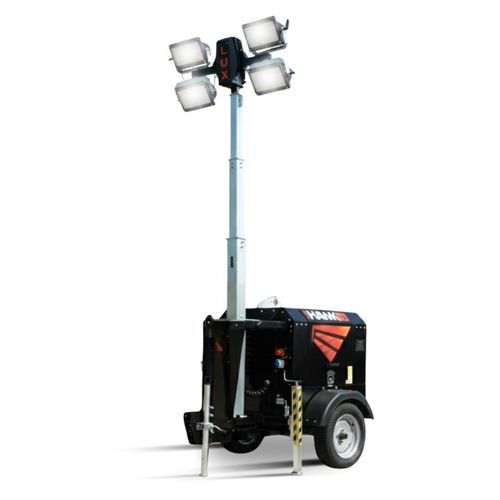

LED light tower Lux Hawk
with combustion enginediesel engine

LED light tower - Lux Hawk - LUXTOWER - Branch of M.E.TA. Srl - with combustion engine / diesel engine
LED light tower - Lux Hawk - LUXTOWER - Branch of M.E.TA. Srl - with combustion engine / diesel engine
Add to favorites
Compare this product

Characteristics

Lighting technology
LED
Power source
with combustion engine, diesel engine
Power

3.5 kW
(4.8 hp)

Description

Overview
  • Compact mobile lighting tower by Luxtower designed for temporary site illumination and industrial applications.
  • Gull‑wing access panels provide excellent accessibility for maintenance and inspections.


Features
  • Made in Italy
  • Compact, reinforced steel construction with corrosion protection
  • Multi‑directionally adjustable and tiltable floodlights
  • High‑efficiency multi‑LED technology (Made in Italy)
  • Galvanized metalwork with 80 µm powder coating
  • Control panel with engine protection alarms and fuel level indicator
  • External emergency stop button
  • Circuit breaker for electrical overload protection
  • Foldable tow trailer for transport and compact storage
  • On‑board levels for stabilization guidance during setup
  • Customizable colour and tower configurations


Configuration / Options
  • Lifting: MANUAL
  • Towing system: FOLDABLE TOW TRAILER (*)
  • Standard factory‑fitted accessory: bunded tank


Performance & Lighting
  • Floodlights: 4 x 320W LED
  • Illuminated area (sqm): 9,300


Powertrain & Generator
  • Engine: KUBOTA Z482 - water cooled
  • Power generator: 3.5 kVA
  • RPM 50Hz / 60Hz: 1500 / 1800
  • Alternator: synchronous


Consumption & Autonomy
  • Fuel consumption (l/h) 50Hz / 60Hz: 0.55 / 0.75
  • Running time (hours) 50Hz / 60Hz: 227 / 167
  • Fuel capacity gross / net (L): 160 / 125
  • Liquid containment (110%): yes


Electrical Outlets
  • Outlet socket 50Hz / 60Hz kVA: 1.3 / 1.2


Dimensions & Stability
  • Min. dimensions (LxWxH - mm): 1840 x 1240 x 2560
  • Weight (kg): 603
  • Wind stability: 80


Notes
  • Foldable tow trailer and towing system indicated with (*) are optional or specific configurations referenced on the original datasheet.


Technical specifications
  • LIFTING: MANUAL
  • MAX HEIGHT: 8 m
  • FLOODLIGHTS: 4X320W LED
  • ILLUMINATED AREA (sqm): 9,300
  • ENGINE: KUBOTA Z482 - WATER COOLED
  • POWER GENERATOR KVA: 3.5 kVA
  • RPM 50Hz/60Hz: 1500 / 1800
  • FUEL CONSUMPTION (l/h) 50Hz/60Hz: 0.55 / 0.75
  • RUNNING TIME (hours) 50Hz/60Hz: 227 / 167
  • ALTERNATOR: SYNCHRONOUS
  • OUTLET SOCKET 50Hz/60Hz KVA: 1.3 / 1.2
  • FUEL CAPACITY gross / net (L): 160 / 125
  • LIQUID CONTAINMENT (110%): YES
  • MIN. DIMENSIONS (LxWxH - mm): 1840x1240x2560
  • WEIGHT (kg): 603
  • WIND STABILITY: 80
  • Towing system: FOLDABLE TOW TRAILER (*)
  • STANDARD ACCESSORIES FACTORY FIT: Bunded tank
