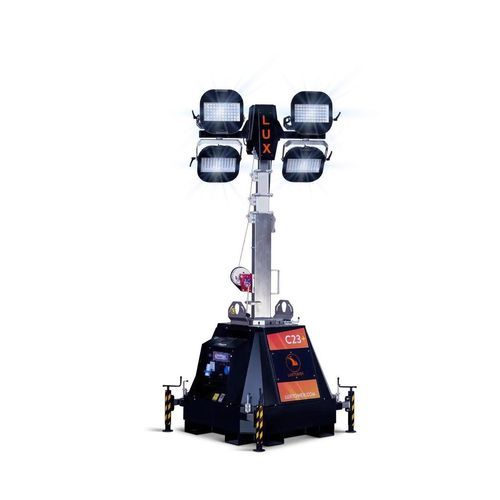

LED light tower LUX C23 PLUS

Overview

• Made in Italy
• Pneumatic mast compatible with Lux S10 and Lux S11
• Compact, industrial mobile lighting tower
• Multi-directionally adjustable and tiltable floodlights
• High-efficiency multi-LED technology made in Italy
• Galvanized metalwork with 80 μm powder coating
• On-board levels for stabilization guidance
• Customizable color and tower options

LIFTING
MANUAL

HANDLING
On base movable via forklift

MAX HEIGHT
9 m

FLOODLIGHTS
LED 4 x 320W

STANDARD ACCESSORIES (factory fitted)

• Light sensor
• Astronomical timer
• Series connectable
• Adjustable spotlights
• Storage compartment

ILLUMINATED AREA (sqm)
9300

MAST ROTATION
340°

POWER SUPPLY
16-230 V

OUTLET SOCKET
16-230 V

WIND STABILITY
110 km/h

WEIGHT
444 kg

SERIAL CONNECTIONS
Up to 6 units can be connected in series to an 8 kW generator.

MIN. DIMENSIONS (LxWxH - mm)
1150 x 1150 x 2680

PLUS

• No noise
• No maintenance
• Silent operation
• Indoor and outdoor use

Technical specifications

• Model: LUX C23 PLUS
• Brand: Luxtower
• Lifting: MANUAL
• Handling: On base movable via forklift
• Max height: 9 m
• Floodlights: LED 4 x 320W
• Illuminated area (sqm): 9300
• Mast rotation: 340°
• Power supply: 16-230 V
• Outlet socket: 16-230 V
• Wind stability: 110 km/h
• Weight: 444 kg
• Serial connections: up to 6 units in series to an 8 kW generator
• Min dimensions (LxWxH mm): 1150 x 1150 x 2680
• Standard accessories: Light sensor, Astronomical timer, Series connectable, Adjustable spotlights, Storage compartment
• Plus features: No noise, No maintenance, Silent operation, Indoor and outdoor use
