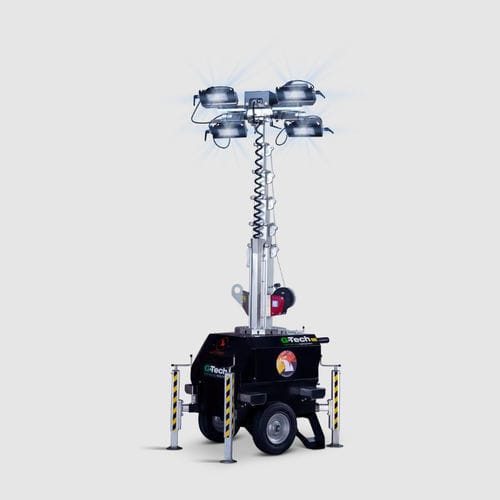

LED light tower LUX C12

Overview

• Made in Italy
• Pneumatic mast made in Italy for Lux S10 and Lux S11
• Compact lighting tower design
• Multi-directionally adjustable and tiltable floodlights
• High-efficiency multi-LED modules made in Italy
• Galvanized metalwork with 80 μm powder coating
• On-board levels for stabilization guidance
• Customizable color and tower configurations

LIFTING
MANUAL

HANDLING
Manual via wheels and handles

MAX HEIGHT
7 m

FLOODLIGHTS
LED 4 x 160W

STANDARD ACCESSORIES FACTORY FIT
180° manual tilting T-bar, light sensor, connectable in series

ILLUMINATED AREA (m²)
4700

MAST ROTATION
340°

POWER SUPPLY (A/V)
16-230 V

OUTLET SOCKET (A/V)
16-230 V

WIND STABILITY
110 Km/h

WEIGHT (kg)
290

SERIAL CONNECTIONS
6 units can be connected in series to a 4 kW generator.

PLUS

• No noise
• No maintenance
• Silent operation
• Indoor and outdoor use

MIN. DIMENSIONS (LxWxH - mm)
1170 x 800 x 2345

Caractéristiques / spécifications techniques

• Model: LUX C12
• Brand: Luxtower
• Lifting: MANUAL
• Handling: Manual via wheels and handles
• Max height: 7 m
• Floodlights: LED 4 x 160W
• Standard accessories factory fit: 180° manual tilting T-bar, light sensor, connectable in series
• Illuminated area (m²): 4700
• Mast rotation: 340°
• Power supply (A/V): 16-230 V
• Outlet socket (A/V): 16-230 V
• Wind stability: 110 Km/h
• Weight (kg): 290
• Serial connections: 6 units can be connected in series to a 4 kW generator
• Minimum dimensions (LxWxH mm): 1170 x 800 x 2345
• Additional positives: No noise, No maintenance, Silent operation, Indoor and outdoor use
