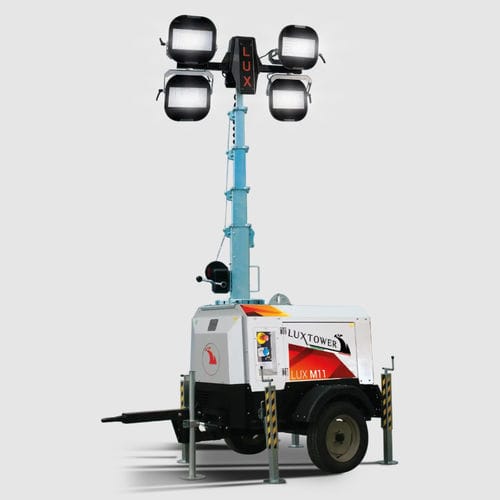

LED light tower LUX M11
diesel engine

LED light tower - LUX M11 - LUXTOWER - Branch of M.E.TA. Srl - diesel engine
LED light tower - LUX M11 - LUXTOWER - Branch of M.E.TA. Srl - diesel engine
Add to favorites
Compare this product

Characteristics

Lighting technology
LED
Power source
diesel engine
Power

Min.: 1.3 kW
(1.7 hp)

Max.: 3.5 kW
(4.8 hp)

Description

Features
  • Made in Italy
  • Compact lighting tower design with manual mast
  • 4 multi-directionally adjustable and tiltable 320W LED floodlights (4×320W)
  • High-efficiency multi-LED modules made in Italy
  • Galvanized metalwork with 80 μm powder coating
  • Control panel with engine protection and fuel level alarms
  • External emergency stop and circuit breaker for electrical protection
  • Foldable tow trailer with on-board stabilisation level indicators
  • Customisable colours and tower options


Applications
  • Construction and civil works
  • Road and highway maintenance
  • Industrial and plant maintenance
  • Events and temporary sites
  • Emergency and disaster response


Technical specifications
  • Model: LUX M11
  • Lifting: MANUAL
  • Max height: 8 m
  • Floodlights: 4 × 320W LED (multi-directional)
  • Illuminated area: 9300 m²
  • Engine: KUBOTA Z482 - water cooled
  • Power generator: 3.5 kVA
  • RPM (50Hz / 60Hz): 1500 / 1800
  • Fuel consumption (l/h) (50Hz / 60Hz): 0.55 / 0.75
  • Running time (hours) (50Hz / 60Hz): 145 / 106
  • Alternator: Synchronous
  • Fuel capacity (gross / net): 80 L
  • Outlet socket (50Hz / 60Hz): 1.3 / 1.2 kVA
  • Min. dimensions (L×W×H - mm): 1780 × 1380 × 2560
  • Weight: 700 kg
  • Wind stability: 80 km/h
  • Towing system: Foldable tow trailer


Options & maintenance
  • Custom colours and tower variants available on request
  • On-board levels facilitate stabilisation during deployment
  • Routine maintenance access points for engine and generator
