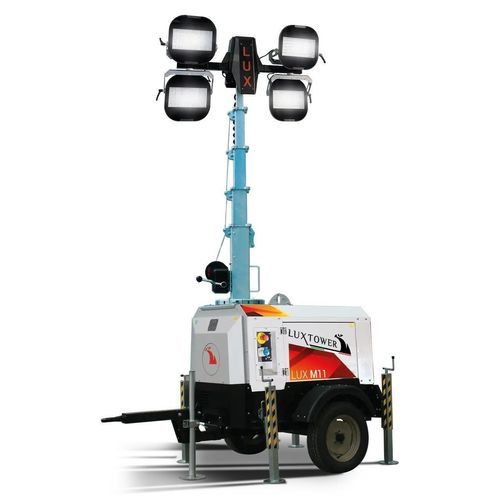

LED light tower LUX M11 PLUSwith combustion engine
Add to favorites
Compare this product
Characteristics
- Lighting technology
- LED
- Power source
- with combustion engine
- Power
3.5 kW
(4.8 hp)
Description
Product name
LUX M11 PLUS
Overview
A compact lighting tower designed and manufactured in Italy for site and event illumination. Multi-directionally adjustable and tiltable high-efficiency LED floodlights enable targeted lighting. Standard factory-fit accessories include main generator switch, bunded tank, DSE 3110 digital control panel and light sensor.
Features
LIFTING
MANUAL
MAX HEIGHT
8 m
FLOODLIGHTS
4 x 320W LED
Towing system
Foldable tow trailer (optional / indicated with *)
STANDARD ACCESSORIES FACTORY FIT
switch main generator, bunded tank, DSE 3110 digital control panel, light sensor
ILLUMINATED AREA (sqm)
9300
ENGINE
KUBOTA Z482 - WATER COOLED
POWER GENERATOR KVA
3.5 kVA
RPM 50Hz / 60Hz
1500 / 1800
FUEL CONSUMPTION (l/h) 50Hz / 60Hz
0.55 / 0.75
RUNNING TIME (hours) 50Hz / 60Hz
145 / 106
ALTERNATOR
SYNCHRONOUS
FUEL CAPACITY gross / net (lt)
103 / 80
OUTLET SOCKET 50Hz/60Hz KVA
1.3 / 1.2
MIN. DIMENSIONS (L x W x H - mm)
1780 x 1380 x 2560
WEIGHT (kg)
700
WIND STABILITY
80
Technical specifications
LUX M11 PLUS
Overview
A compact lighting tower designed and manufactured in Italy for site and event illumination. Multi-directionally adjustable and tiltable high-efficiency LED floodlights enable targeted lighting. Standard factory-fit accessories include main generator switch, bunded tank, DSE 3110 digital control panel and light sensor.
Features
- Made in Italy
- Compact and robust lighting tower design
- Multi-directionally adjustable and tiltable floodlights
- High-efficiency multi-LED technology
- Galvanized metalwork with 80 μm powder coating
- Control panel alarms for engine protection and fuel level indication
- External emergency stop button
- Circuit breaker for electrical overload protection
- Foldable site trailer
- On-board levels for stabilization guidance
- Customizable color and tower options
LIFTING
MANUAL
MAX HEIGHT
8 m
FLOODLIGHTS
4 x 320W LED
Towing system
Foldable tow trailer (optional / indicated with *)
STANDARD ACCESSORIES FACTORY FIT
switch main generator, bunded tank, DSE 3110 digital control panel, light sensor
ILLUMINATED AREA (sqm)
9300
ENGINE
KUBOTA Z482 - WATER COOLED
POWER GENERATOR KVA
3.5 kVA
RPM 50Hz / 60Hz
1500 / 1800
FUEL CONSUMPTION (l/h) 50Hz / 60Hz
0.55 / 0.75
RUNNING TIME (hours) 50Hz / 60Hz
145 / 106
ALTERNATOR
SYNCHRONOUS
FUEL CAPACITY gross / net (lt)
103 / 80
OUTLET SOCKET 50Hz/60Hz KVA
1.3 / 1.2
MIN. DIMENSIONS (L x W x H - mm)
1780 x 1380 x 2560
WEIGHT (kg)
700
WIND STABILITY
80
Technical specifications
- Model: LUX M11 PLUS
- Lifting: Manual
- Maximum mast height: 8 m
- Floodlights: 4 x 320W LED (multi-directional, tiltable)
- Illuminated area: 9300 sqm
- Engine: Kubota Z482 (water cooled)
- Generator power: 3.5 kVA
- RPM: 1500 (50Hz) / 1800 (60Hz)
- Fuel consumption: 0.55 l/h (50Hz) / 0.75 l/h (60Hz)
- Running time: 145 h (50Hz) / 106 h (60Hz)
- Alternator type: Synchronous
- Outlet socket: 1.3 kVA (50Hz) / 1.2 kVA (60Hz)
- Fuel capacity gross / net: 103 / 80 L
- Liquid containment (110%): Provided
- Minimum dimensions (L x W x H): 1780 x 1380 x 2560 mm
- Weight: 700 kg
- Wind stability: 80
- Standard factory fit accessories: main generator switch, bunded tank, DSE 3110 control panel, light sensor
