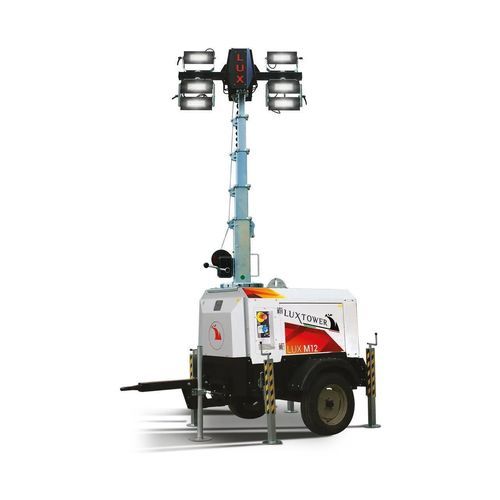

LED light tower LUX M12

with combustion enginediesel engine

Product overview

• Made in Italy
• Compact, robust lighting tower design
• Multi-directionally adjustable and tiltable floodlights
• High-efficiency multi-LED technology made in Italy
• Galvanized metalwork with 80 μm powder coating
• Control panel alarms for engine protection and fuel level indication
• External emergency stop button
• Circuit breaker for electrical overload protection
• Foldable tow trailer (factory-fit option)
• On-board levels for stabilization guidance
• Customizable color and tower options

Configuration / Key Features
LIFTING: MANUAL
MAX HEIGHT: 8 m
FLOODLIGHTS: 6 x 160W LED
Towing system: (*)
FOLDABLE TOW TRAILER: (*)

Performance & Power
ENGINE: KUBOTA Z482 - WATER COOLED
GENERATOR POWER: 3.5 KVA
RPM (50Hz / 60Hz): 1500 / 1800
FUEL CONSUMPTION (l/h) 50Hz / 60Hz: 0.55 / 0.75
RUNNING TIME (hours) 50Hz / 60Hz: 145 / 106
ILLUMINATED AREA (sqm): 7000
OUTLET SOCKET 50Hz/60Hz (KVA): 1.3 / 1.2
FUEL CAPACITY gross / net (l): 80
MIN. DIMENSIONS (LxWxH - mm): 1780 x 1380 x 2560
WEIGHT (kg) (**): 686
WIND STABILITY: 80

Additional information
Standard factory-fit accessories and options are listed in the accessories section on the product page.

Technical specifications

• Model: LUX M12
• Brand: Luxtower
• Lifting: MANUAL
• Max height: 8 m
• Floodlights: 6 x 160W LED
• Engine: KUBOTA Z482 - water cooled
• Generator power: 3.5 KVA
• RPM (50Hz/60Hz): 1500 / 1800
• Fuel consumption (l/h) 50Hz/60Hz: 0.55 / 0.75
• Running time (hours) 50Hz/60Hz: 145 / 106
• Illuminated area: 7000 sqm
• Outlet socket (KVA) 50Hz/60Hz: 1.3 / 1.2
• Fuel capacity (gross/net): 80 l
• Min. dimensions (L x W x H): 1780 x 1380 x 2560 mm
• Weight: 686 kg
• Wind stability: 80
• Construction: Galvanized metalwork with 80 μm powder coating
• Safety & control: Control panel alarms, external emergency stop, circuit breaker
• Trailer: Foldable tow trailer (factory-fit option / towing system available)
