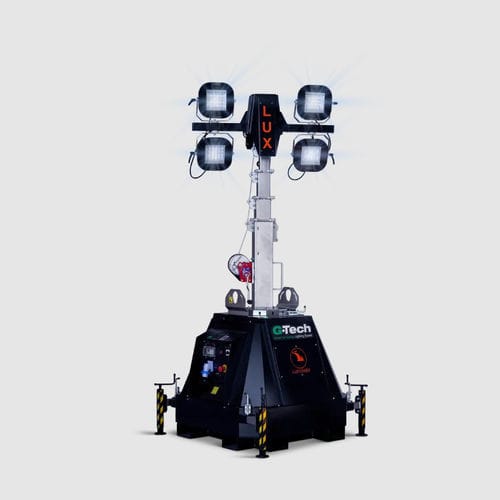

LED light tower LUX C23B

battery-powered

Product
LUX C23B lighting tower for temporary site illumination; battery-powered LED solution manufactured in Italy.

Key features

• Made in Italy
• Compact design with galvanized metalwork and 80 μm powder coating
• Multi-directionally adjustable and tiltable floodlights
• High-efficiency multi-LED technology
• On-board levels for stabilization guidance
• Customizable color and tower options

Floodlights
LED 4 x 100W

Lifting
Manual mast extension

Handling
Movable on base via forklift

Max height
8 m

Standard accessories (factory fit)

• Timer
• Three working modes selector (Manual, Auto, Emergency)
• Storage compartment

Illuminated area (sqm)
3000

Mast rotation
340°

Battery pack
4 × AGM 24V – 400Ah (24Vdc)

Running time
36 h

Charging time
12 h

Power supply (A/V)
16–230

Wind stability
110 km/h

Weight
668 kg

Advantages

• Silent operation (no noise)
• Low maintenance
• Suitable for indoor and outdoor use

Minimum dimensions (L×W×H - mm)
1147 × 1147 × 2320

Technical specifications

• Model: LUX C23B
• Floodlights: LED 4 x 100W
• Lifting: Manual
• Handling: Base movable via forklift
• Max height: 8 m
• Illuminated area: 3000 m²
• Mast rotation: 340°
• Battery pack: 4 × AGM 24V – 400Ah (24Vdc)
• Running time: 36 h
• Charging time: 12 h
• Power supply: 16–230 (A/V)
• Wind stability: 110 km/h
• Weight: 668 kg
• Min. dimensions (L×W×H): 1147 × 1147 × 2320 mm
• Factory fitted accessories: Timer; Three working modes selector (Manual, Auto, Emergency); Storage compartment
• Construction: Galvanized metalwork with 80 μm powder coating
• Other: Multi-directionally adjustable and tiltable floodlights; High-efficiency multi-LED technology; On-board stabilization levels; Customizable color and tower options; Suitable for indoor and outdoor use; Silent, low maintenance
