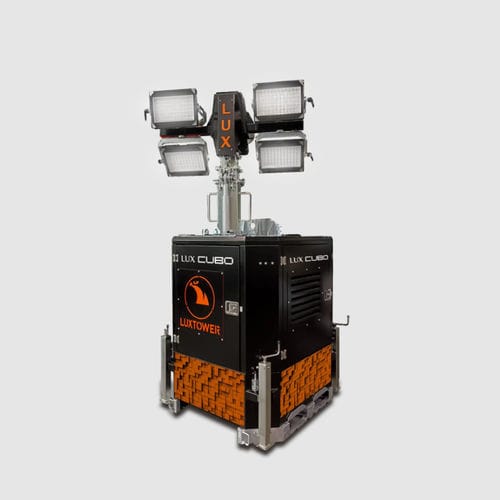

LED light tower LUX CUBO

LED light tower - LUX CUBO - LUXTOWER - Branch of M.E.TA. Srl
LED light tower - LUX CUBO - LUXTOWER - Branch of M.E.TA. Srl
Add to favorites
Compare this product

Characteristics

Lighting technology
LED
Power

1,280 W
(1.7 hp)

Description

General
  • Product name: LUX CUBO
  • Brand: Luxtower


Main features
  • Lifting: HYDRAULIC mast, max height 8 m
  • Floodlights: 4 x 320W LED
  • Towing system: on base


Standard accessories (factory fit)
  • Switch main/generator
  • Bunded tank
  • DSE 3110 digital control
  • Light sensor
  • Timer


Also available
  • Version with 3-cylinder engine — 3 kVA outlet socket


Performance
  • Illuminated area: 9,300 m²


Powertrain & generator
  • Engine: KUBOTA Z482 — water cooled
  • Power generator: 3.5 kVA
  • RPM (50Hz / 60Hz): 1500 / 1800


Fuel & autonomy
  • Fuel consumption (l/h) 50Hz / 60Hz: 0.55 / 0.75
  • Running time (hours) 50Hz / 60Hz: 355 / 260
  • Fuel capacity gross / net (L): 270 / 195


Alternator & outlets
  • Alternator: SYNCHRONOUS LINZ ALLUMEN
  • Outlet socket 50Hz / 60Hz (kVA): 1.3 / 1.2 (or 3 kVA with 3-cylinder engine)


Dimensions & weight
  • Min. dimensions (L x W x H - mm): 1200 x 1100 x 2500
  • Weight (kg): 854


Other specifications
  • Liquid containment (110%): X
  • Wind stability: 110


Technical specifications
  • Product: LUX CUBO
  • Brand: Luxtower
  • Lifting: HYDRAULIC
  • Max height: 8 m
  • Floodlights: 4 x 320W LED
  • Towing system: ON BASE
  • Standard accessories: Switch main/generator; bunded tank; DSE 3110 digital control; light sensor; timer
  • Illuminated area (m²): 9,300
  • Engine: KUBOTA Z482 — WATER COOLED
  • Power generator (kVA): 3.5
  • RPM 50Hz/60Hz: 1500/1800
  • Fuel consumption (l/h) 50Hz/60Hz: 0.55 / 0.75
  • Running time (hours) 50Hz/60Hz: 355 / 260
  • Alternator: SYNCHRONOUS LINZ ALLUMEN
  • Fuel capacity gross / net (L): 270 / 195
  • Liquid containment (110%): X
  • Outlet socket 50Hz/60Hz (kVA): 1.3 / 1.2 (also 3 kVA option with 3-cylinder engine)
  • Min. dimensions (L x W x H mm): 1200 x 1100 x 2500
  • Weight (kg): 854
  • Wind stability: 110
