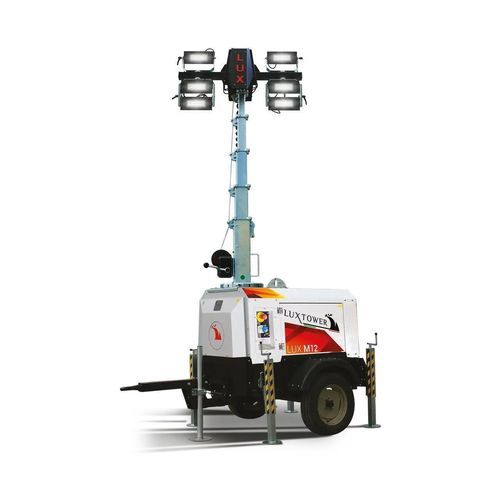

LED light tower LUX M12 PLUS
with combustion engine

LED light tower - LUX M12 PLUS - LUXTOWER - Branch of M.E.TA. Srl - with combustion engine
LED light tower - LUX M12 PLUS - LUXTOWER - Branch of M.E.TA. Srl - with combustion engine
Add to favorites
Compare this product

Characteristics

Lighting technology
LED
Power source
with combustion engine
Power

3.5 kW
(4.8 hp)

Description

General
  • Product: LUX M12 PLUS lighting tower
  • Made in Italy
  • Typical applications: construction, events, roadworks, mining, rental fleets


Lifting
  • Manual mast operation


Max height
8 m

Floodlights
  • 6 × 160W LED, multi-directional and tiltable


Towing / Trailer
  • Towing system (optional)
  • Foldable tow trailer (optional)


Standard accessories (factory fit)
  • Main generator switch
  • Bunded fuel tank
  • DSE 3110 digital control panel
  • Light sensor


Illuminated area (sqm)
7000

Engine
  • KUBOTA Z482 — water-cooled


Power generator (kVA)
3.5 kVA

RPM 50Hz / 60Hz
1500 / 1800 rpm

Fuel consumption (l/h) 50Hz / 60Hz
0.55 / 0.75 l/h

Running time (hours) 50Hz / 60Hz
145 / 106 h

Alternator
  • Synchronous


Fuel capacity (gross / net, l)
80 l

Outlet socket 50Hz/60Hz (kVA)
1.3 / 1.2 kVA

Min. dimensions (L x W x H - mm)
1780 x 1380 x 2560 mm

Weight (kg)
686 kg

Wind stability
80 km/h

Features
  • Compact, towable design for restricted sites
  • High-efficiency multi-LED modules (made in Italy)
  • Galvanized metalwork with 80 µm powder coating for corrosion protection
  • Control panel alarms for engine protection and fuel level monitoring
  • External emergency stop button
  • Circuit breaker for electrical overload protection
  • Foldable site trailer for easy transport and storage
  • On-board leveling guides for rapid stabilization
  • Customizable tower and paint options


Technical specifications
  • Model: LUX M12 PLUS
  • Lift: Manual
  • Max height: 8 m
  • Floodlights: 6 × 160W LED
  • Illuminated area: 7000 m²
  • Engine: KUBOTA Z482 (water-cooled)
  • Generator power: 3.5 kVA
  • RPM: 1500 / 1800 rpm
  • Fuel consumption: 0.55 l/h (50Hz) / 0.75 l/h (60Hz)
  • Running time: 145 h (50Hz) / 106 h (60Hz)
  • Alternator: Synchronous
  • Fuel capacity: 80 l (gross/net)
  • Outlet socket: 1.3 kVA (50Hz) / 1.2 kVA (60Hz)
  • Min dimensions (L×W×H): 1780 × 1380 × 2560 mm
  • Weight: 686 kg
  • Wind stability: 80 km/h
  • Standard accessories: main generator switch, bunded tank, DSE 3110 control panel, light sensor
