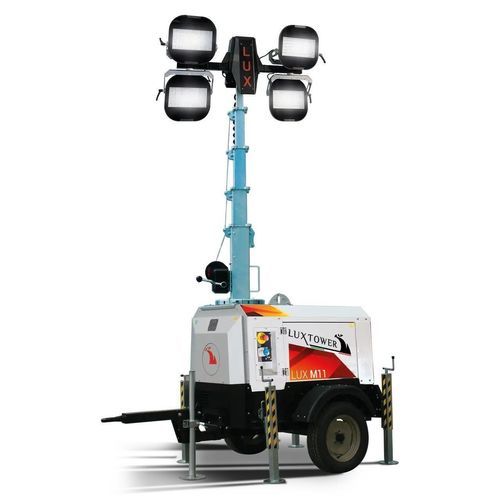

LED light tower LUX M11 MAX
diesel engine

LED light tower - LUX M11 MAX - LUXTOWER - Branch of M.E.TA. Srl - diesel engine
LED light tower - LUX M11 MAX - LUXTOWER - Branch of M.E.TA. Srl - diesel engine
Add to favorites
Compare this product

Characteristics

Lighting technology
LED
Power source
diesel engine
Power

8 kW
(10.9 hp)

Description

Features
  • Made in Italy
  • Compact industrial mobile lighting tower with foldable trailer option
  • Four multi-directionally adjustable and tiltable 320W LED floodlights
  • High-efficiency multi-LED modules made in Italy
  • Galvanized metalwork with 80 μm powder coating for corrosion resistance
  • Control panel with engine protection and fuel level alarms
  • External emergency stop and circuit breaker for electrical overload protection
  • On-board stabilization levels for rapid site setup
  • Customizable tower and color options


General configuration
  • Lifting: Manual
  • Max height: 8 m
  • Floodlights: 4×320W LED
  • Towing system: Optional foldable tow trailer; site tow with spring axles (factory fit)


Performance / Light
  • Illuminated area: 9,300 m²


Engine & Generator
  • Engine: Kubota D1105, water cooled
  • Generator power: 8 kVA
  • RPM 50Hz/60Hz: 1500 / 1800
  • Alternator: Synchronous
  • Outlet sockets: 3


Fuel & Consumption
  • Fuel capacity (gross/net): 80 L
  • Fuel consumption (l/h) 50Hz/60Hz: 1.82 / 2.2
  • Running time (hours) 50Hz/60Hz: 43 / 36
  • Liquid containment (110%): Not specified


Dimensions & Weight
  • Min. dimensions (L×W×H): 1916 × 1380 × 2560 mm
  • Weight: 820 kg


Stability & Safety
  • Wind stability: 80


Standard accessories / notes
  • Standard factory-fit accessories as indicated on the product page
  • Foldable tow trailer available (optional)
  • On-board stabilization levels included


Technical specifications
  • Model name: LUX M11 MAX
  • Brand: Luxtower
  • Lifting: Manual
  • Max height: 8 m
  • Floodlights: 4 × 320W LED
  • Illuminated area: 9,300 m²
  • Engine: Kubota D1105 (water cooled)
  • Generator: 8 kVA
  • RPM: 1500 / 1800 (50Hz / 60Hz)
  • Fuel consumption: 1.82 l/h (50Hz) / 2.2 l/h (60Hz)
  • Running time: 43 h (50Hz) / 36 h (60Hz)
  • Alternator: Synchronous
  • Outlet sockets: 3
  • Fuel capacity (gross/net): 80 L
  • Min dimensions (L×W×H): 1916 × 1380 × 2560 mm
  • Weight: 820 kg
  • Wind stability: 80
  • Towing system: Foldable tow trailer (optional); site tow with spring axles
