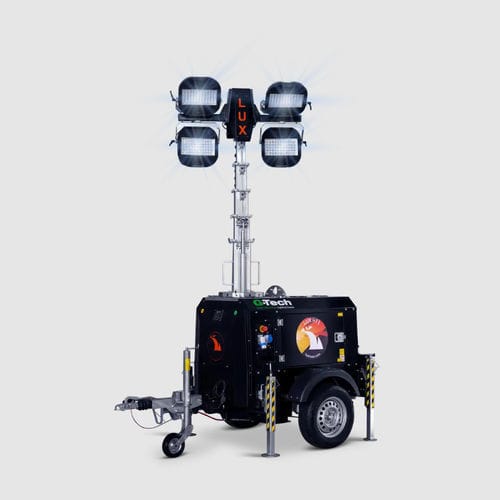

LED light tower LUX H11 PLUS

with combustion enginediesel engine

FEATURES LUXTOWER LIGHTING TOWERS

• Made in Italy
• Compact, corrosion‑resistant galvanized steel structure with 80 μm powder coating
• Multi-directionally adjustable and tiltable high-efficiency LED floodlights
• Hydraulic lift system with on-board stabilization levels
• Integrated generator and control panel with engine alarms and fuel level indication
• External emergency stop and circuit breaker protection
• Foldable tow trailer for transport; customizable color and tower options

LIFTING
HYDRAULIC

MAX HEIGHT
8 m

FLOODLIGHTS
4 × 320W LED (adjustable & tiltable)

Towing system (*)
FOLDABLE TOW TRAILER (*)

STANDARD ACCESSORIES FACTORY FIT

• Main generator switch
• Bunded fuel tank
• DSE 3110 digital controller
• Light sensor

ILLUMINATED AREA (sqm)
9300

ENGINE
KUBOTA Z482 — WATER COOLED

POWER GENERATOR (kVA)
3.5

RPM 50Hz / 60Hz
1500 / 1800

FUEL CONSUMPTION (l/h) 50Hz / 60Hz
0.55 / 0.75

RUNNING TIME (hours) 50Hz / 60Hz
145 / 106

ALTERNATOR
SYNCHRONOUS LINZ ALLUMEN

FUEL CAPACITY gross / net (lt)
103 / 80

LIQUID CONTAINMENT (110%)
Yes

OUTLET SOCKET 50Hz / 60Hz (kVA)
1.3 / 1.2

MIN. DIMENSIONS (L×W×H - mm)
2510 × 1370 × 2530

WEIGHT (kg) (**)
800

WIND STABILITY
80 (as specified)

TECHNICAL SPECIFICATIONS

• Model: LUX H11 PLUS
• Brand: Luxtower
• Lift system: Hydraulic
• Maximum mast height: 8 m
• Floodlights: 4 × 320W LED, multi-directionally adjustable and tiltable
• Illuminated area: 9,300 sqm
• Engine: Kubota Z482 (water cooled)
• Power generator: 3.5 kVA
• RPM: 1500 (50Hz) / 1800 (60Hz)
• Fuel consumption: 0.55 l/h (50Hz) / 0.75 l/h (60Hz)
• Running time: 145 h (50Hz) / 106 h (60Hz)
• Alternator: Synchronous Linz Allumen
• Fuel capacity gross / net: 103 / 80 lt
• Liquid containment: 110% bunded tank
• Outlet socket: 1.3 kVA (50Hz) / 1.2 kVA (60Hz)
• Minimum dimensions (L×W×H): 2510 × 1370 × 2530 mm
• Weight: 800 kg
• Wind stability: 80 (unit as provided)
• Towing system: Foldable tow trailer available
• Standard factory-fit accessories: main generator switch, bunded tank, DSE 3110 digital control, light sensor
• Construction: Galvanized metalwork with 80 μm powder coating
• Controls & protection: control panel alarms, external emergency stop, circuit breaker
• Customization: color and tower options available
