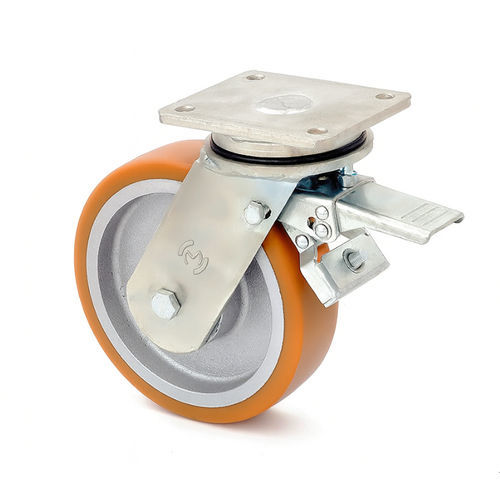

Wheel with solid tire LP/4/200/KDS – 1000 kg
castplateelastic

Wheel with solid tire - LP/4/200/KDS – 1000 kg - MARBA - cast / plate / elastic
Wheel with solid tire - LP/4/200/KDS – 1000 kg - MARBA - cast / plate / elastic
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast
Applications
plate
Other characteristics
non-marking, elastic

Description

"Swivel Wheel Set with Brake LP/4/200/KDS – Cast Iron–Polyurethane Wheel – 1000 kg Technical parameters: · Safety factor 1.3, maximum load when using 4 wheels: 3000 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 245 mm Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: welded from 8 mm thick zinc-coated steel plate, swivel head with double bearings (51112 and 30204). Bolted wheel axle. Mounting type: top plate. "
