Wheel with solid tire LVS/4/200/K – 1000 kgcastball bearingpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- cast
- Hub type
- ball bearing
- Tread material
- polyurethane
- Applications
- plate
- Other characteristics
- elastic, non-marking, reinforced
- Load capacity
1,000 kg
(2,205 lb)- Diameter
200 mm
(7.87 in)- Tread width
50 mm
(1.97 in)
Description

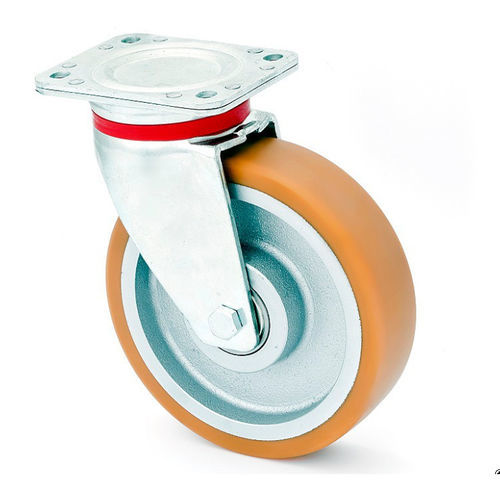

"Swivel Wheel Set LVS/4/200/K – Cast Iron–Polyurethane Wheel – 1000 kg (Heavy Duty)
Technical parameters:
· Safety factor 1.3, maximum load when using 4 wheels: 3000 kg
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Total height: 245 mm
Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance.
Housing: stamped from thick zinc-coated steel plate, swivel head with reinforced construction and double ball bearings, specially sealed. Bolted wheel axle.
Mounting type: top plate.
"
