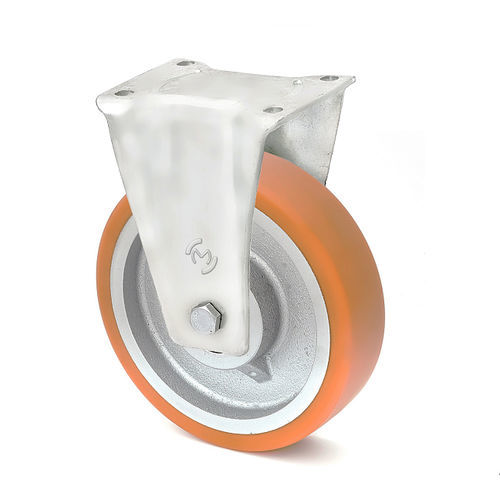

Wheel with solid tire BVS/4/150/K – 750 kg
cast ironplateelastic

Wheel with solid tire - BVS/4/150/K – 750 kg - MARBA - cast iron / plate / elastic
Wheel with solid tire - BVS/4/150/K – 750 kg - MARBA - cast iron / plate / elastic
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast iron
Applications
plate
Other characteristics
non-marking, elastic
Load capacity

750 kg
(1,653 lb)

Diameter

150 mm
(5.91 in)

Tread width

50 mm
(1.97 in)

Description

"Fixed Wheel Set BV/4/150/K – Cast Iron–Polyurethane Wheel – 750 kg (Heavy Duty) Technical parameters: · Safety factor 1.3, maximum load when using 4 wheels: 2250 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 210 mm Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: stamped from thick zinc-coated steel plate. Bolted wheel axle. Mounting type: top plate. "
