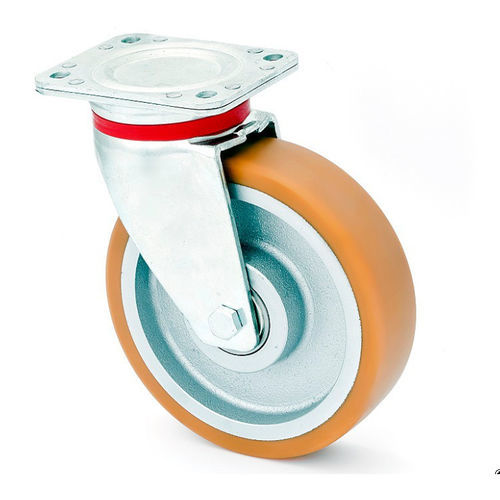

Wheel with solid tire LVS/4/125/K – 600 kgcastpolyurethaneplate
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- cast
- Tread material
- polyurethane
- Applications
- plate
- Other characteristics
- elastic, non-marking, reinforced
- Load capacity
600 kg
(1,323 lb)- Diameter
125 mm
(4.92 in)- Tread width
50 mm
(1.97 in)
Description
"Swivel Wheel Set LVS/4/125/K – Cast Iron–Polyurethane Wheel – 600 kg (Heavy Duty)
Technical parameters:
· Safety factor, maximum load when using 4 wheels: 1800 kg
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Total height: 178 mm
Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance.
Housing: stamped from thick zinc-coated steel plate, swivel head with reinforced construction and double ball bearings, specially sealed. Bolted wheel axle.
Mounting type: top plate.
"
